Introduce: Eye Type Webbing Sling

Webbing sling is made by weaving machine, spliced smoothly and solid.

It divided into double/two layers .

It can be provided in a smooth wide surface when lifting goods .

They also can match the protection material in order to reduce the damage.

Webbing slings are widely used for hoisting, pulling, bundling, fixing goods and other fields.

1. Product Name: Webbing Sling

2. Product Type: W01 (Eye Type)

3. Eye Type: Flat eye

4. Working Load Limit: 1T~12T

5. Length: Customized

6. Color: Customized

7. Material: Polyester, Polypropylene, Nylon

8. Brand Name: J&L

9. Lead Time: To be negotiated

10. Place of origin: Hebei, China

11. Provide OEM. ODM. : Yes

12. Port: Tianjin Port, Shanghai Port, Qingdao Port.

13. Standard: Standard EN1492-1:2000+A1:2008

14. Certification: CE, GS

15. Safety Factor: 5:1, 6:1, 7:1

16. We can provide right solution for you. If you want to learn about more information, please contact us.

Type	Art. No	Working Load Limit (kg)	Approx Width (mm)		Minimum  Length L (m)	Eye Length   (mm)
Type W01(Eye type)			5, 6:1	7:1
	W01-01	1000	25	30	1.1	350
	W01-02	2000	50	60	1.2	400
	W01-03	3000	75	90	1.3	450
	W01-04	4000	100	120	1.4	500
	W01-05	5000	125	150	2.0	550
	W01-06	6000	150	180	2.0	600
	W01-08	8000	200	240	2.0	700
	W01-10	10000	250	300	3.0	800
	W01-12	12000	300	300	3.0	900
	Note: 5:1 & 6:1 & 7:1 safety factor are available.

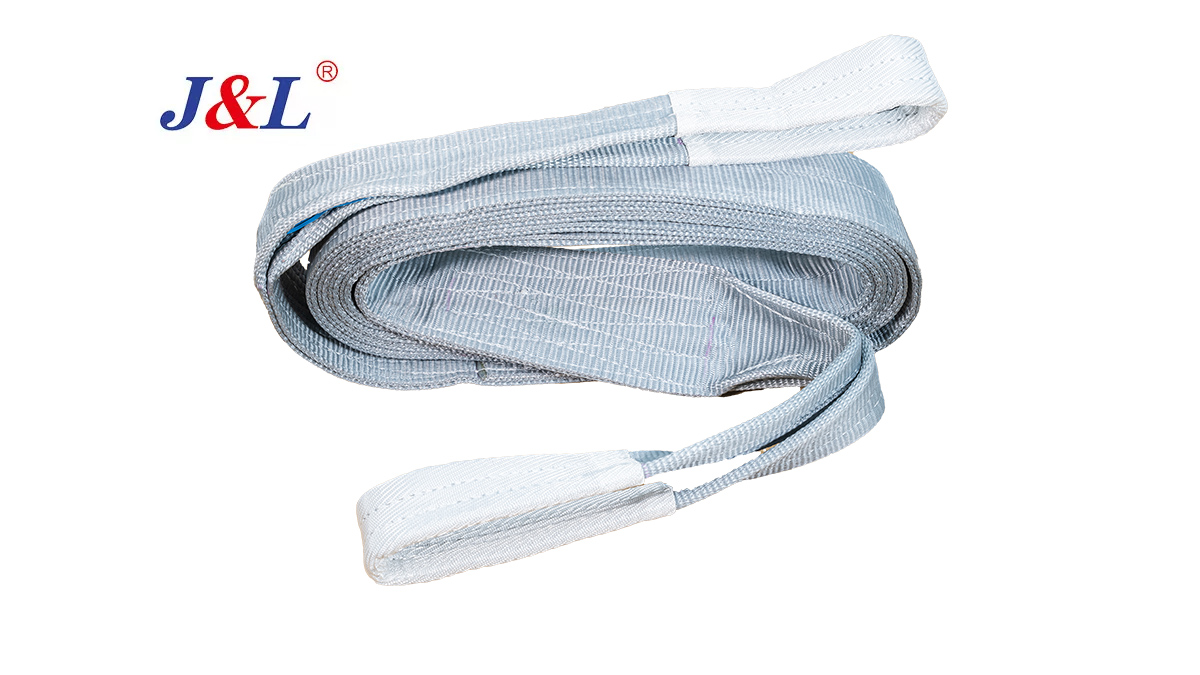

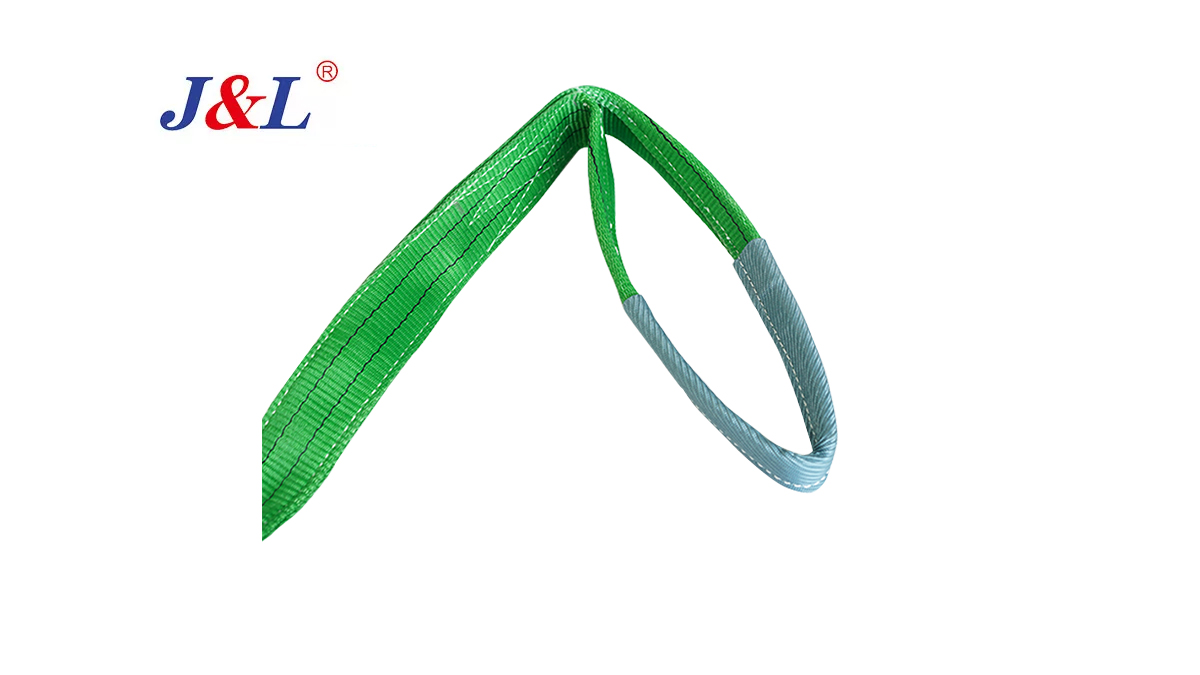

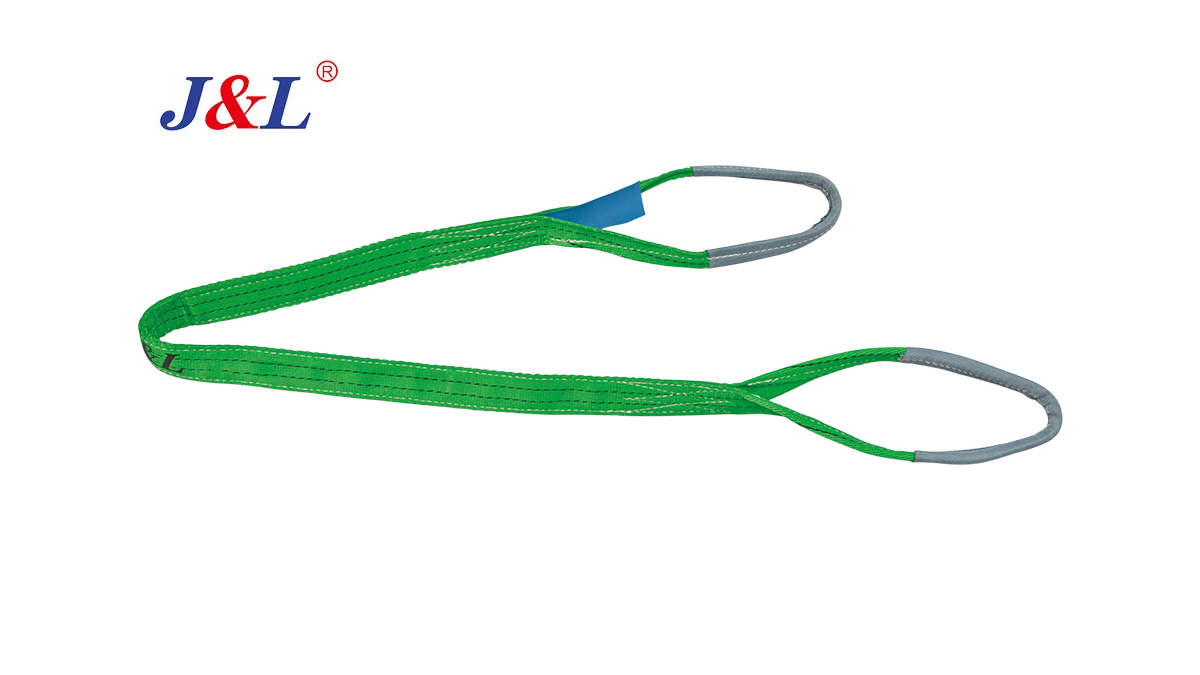

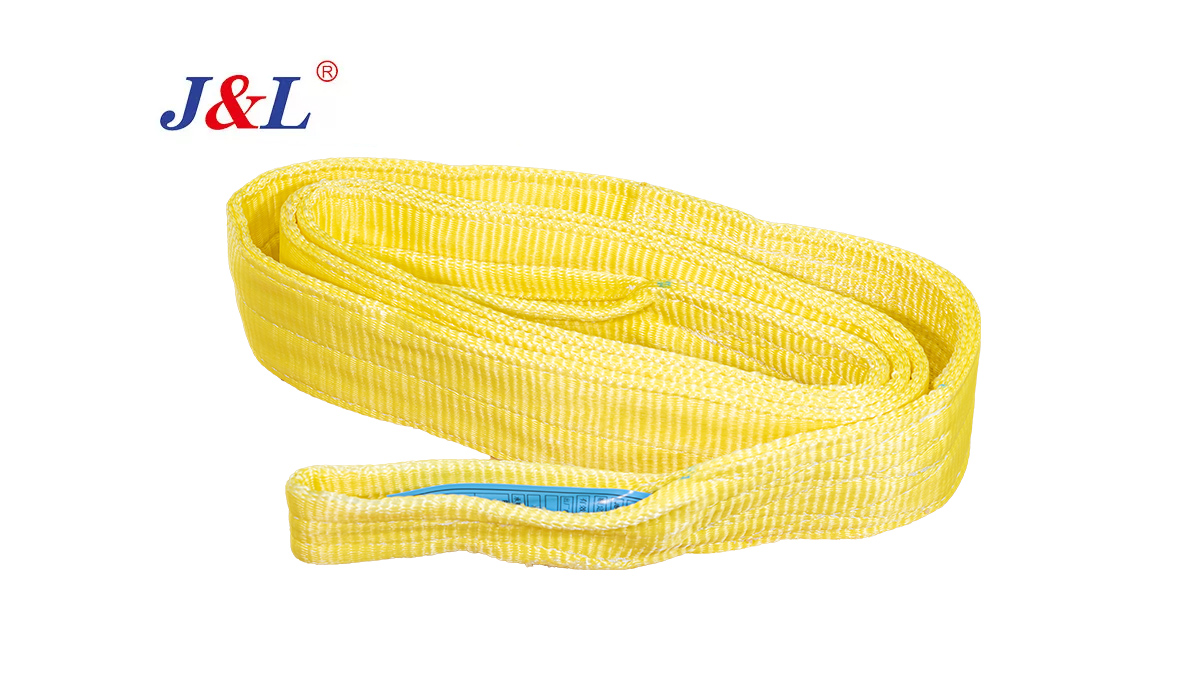

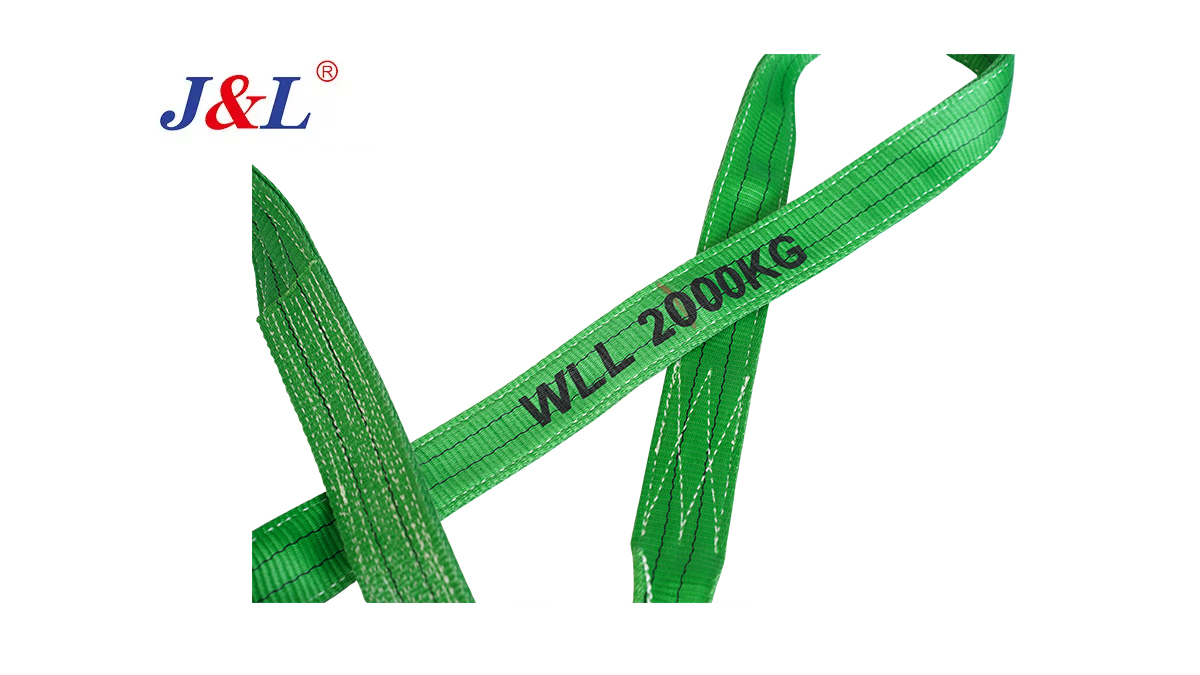

Eye type webbing slings are lifting slings made from high-quality synthetic polyester or nylon materials. They are designed with loops, known as "eyes," at each end of the sling, providing a secure anchor point for attaching hooks, shackles, or other lifting devices.

Advantages of Eye Type Webbing Slings

Lightweight and Flexible

One of the main advantages of eye type webbing slings is their lightweight and flexible nature. Compared to traditional wire rope slings, these slings are easier to handle, transport, and store.

Load Protection

Eye type webbing slings are gentle on the load being lifted, reducing the risk of damage to fragile or sensitive materials. The soft texture of the webbing prevents scratches, dents, and other potential harms.

Versatility in Various Industries

From construction and manufacturing to agriculture and logistics, eye type webbing slings find applications across a wide range of industries, showcasing their adaptability and usefulness.

Cost-Effective Lifting Solution

With their long lifespan and reusability, eye type webbing slings provide a cost-effective lifting solution compared to one-time-use alternatives.

JULI standard export package: Heat shrinking film packaging + Carton + Pallet

Customized packaging according to customer needs

Store in a Dry and Clean Environment

To prolong their lifespan, eye type webbing slings should be stored in a dry and clean environment, away from direct sunlight and harsh chemicals.

Avoid Abrasive Surfaces

During use, avoid dragging the sling over rough or abrasive surfaces, as this can cause damage to the webbing.

Replace Damaged Slings Immediately

Any sling showing signs of damage, such as cuts, tears, or fraying, must be taken out of service and replaced promptly.

Production capacity: We can produce customised products for different applications and customer requirements.

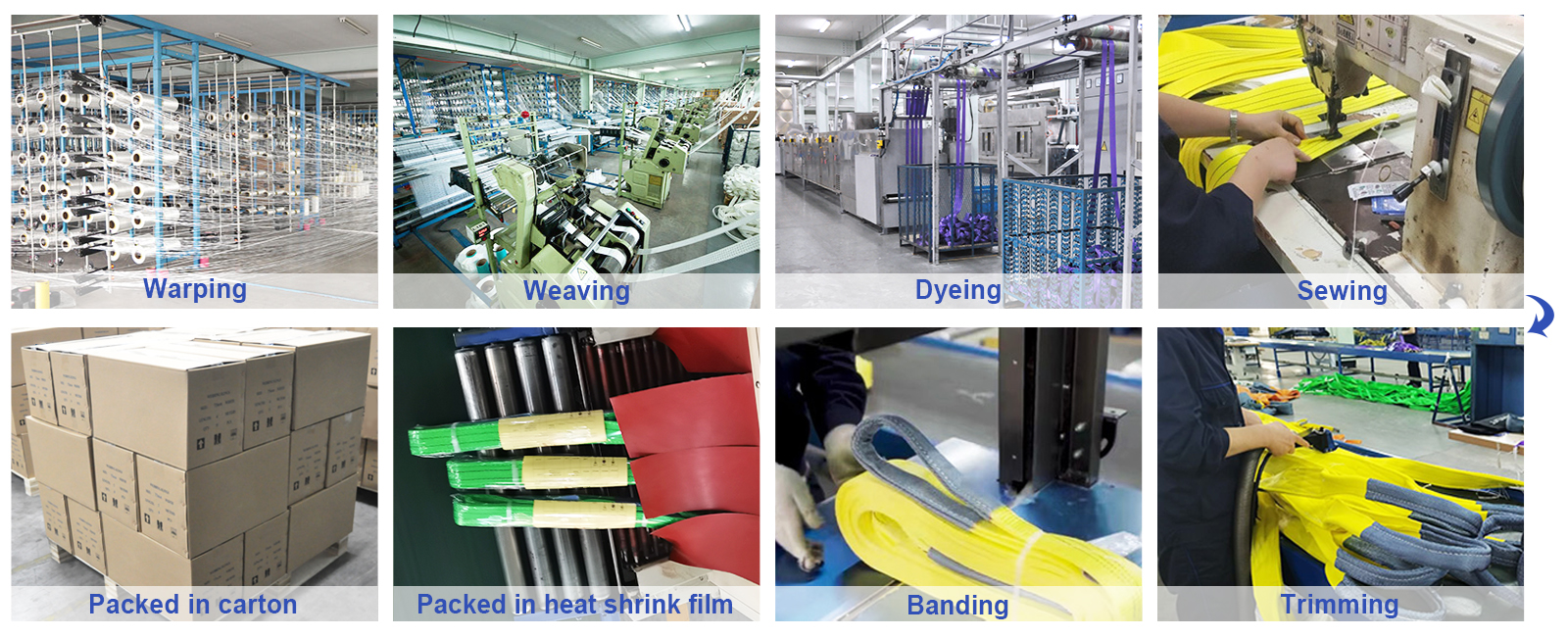

Production process: Beam Warping—Weaving —Dyeing —Sewing —Clean & iron—Taping—Finished Products
