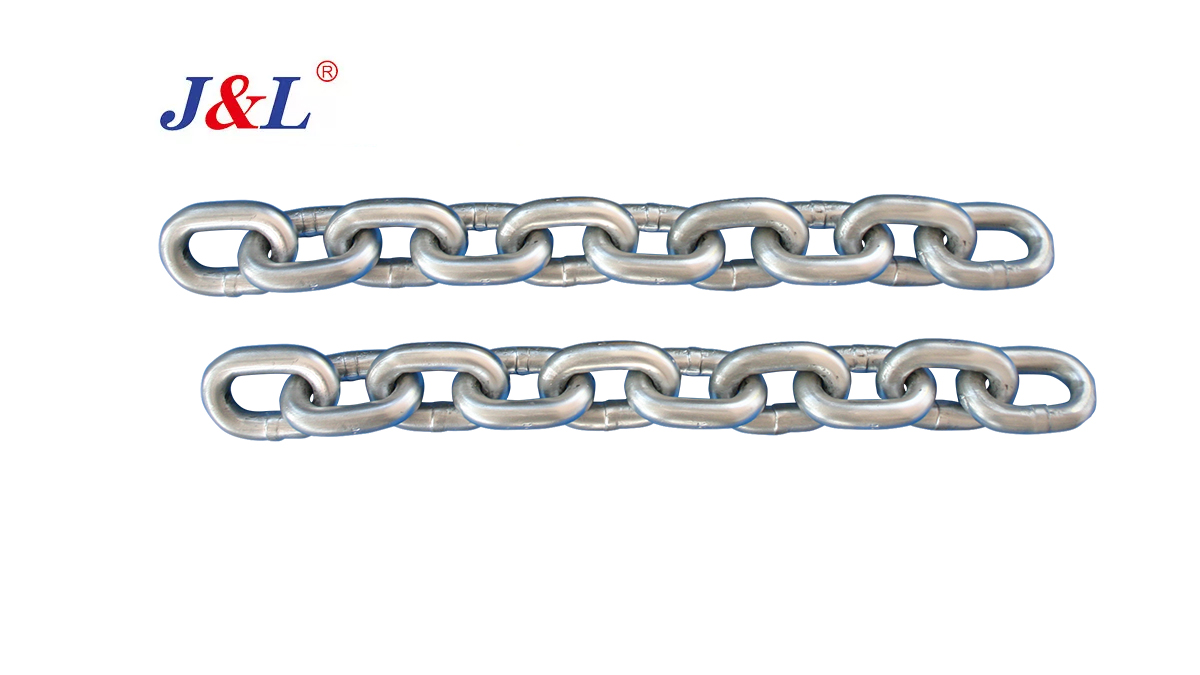

Introduce: Lifting Chain

High-tensile lifting chain, high-tensile chain sling, round link chain and steel compact chain for scraper conveyor and auxiliary part for mine chain. The chain adopts high-quality special steel material from the domestic and foreign market

Description:

1. Model Number:Lifting chain

2. Breaking Load: 45.4-3398kn

3. Application area: lifting

4. Strength grade: 8

5. Safety factor: 4:1

6. Standards:Produced in accordance with the standard of GB/T20946, EN818-2, GB/T24816-2009.

7. Certifications:Mining chain obtained MA certificate. Lifting chain obtained CE certificate

8. Production range is Ф6-Ф52mm.

9.Equipment: Chain factory has chain making machine, flash butt welder, stretcher from WAFIOS (German) and SPECTROMAXx brand metallurgical analysis spectrograph.With the expansion of the market share in recent years, the factory has built 17 chain production lines, 3 chain sling assembly lines and 2 ring welding lines.

Inquire Now

Main Features:

The advantage of our chains is wear-resisting, high temperature resistance, corrosion resistance, corrosion resistance, ductility, low stress, won't elongation, Mining chain obtained MA certificate. Lifting chain obtained CEcertificate and participated in the compose of GB/T24816 "Short link chain and hoists lifting chainwith grade eight ordinary precision chain". The chain adopts high-quality special steel material fromthe domestic and foreign market and produced in accordance with the standard of EN818-2, GB/T24816-2009, GB/T12718-2009, Q/JL018-2012.Production range is Φ6-Φ52mm.

Product Usage:

Mine scraper conveyor, scraper loader,plow and other equipment，lifting and is mainly used for machinery manufacture, transportation, mining, etc.

Chain

Specifications

Lifting Chain
	Diameter dn	Inside Length P (mm)			Width (mm)		Working Load Limit (t)	Weight/m (kg/m)	Testing Load (KN)	Min.Breaking Load (KN)	Elongation at Break (%)
	Diameter dn	Size	Maximum Inner Length	Minimum Inner Length	Minimum Inner Width b1	Maximum Extemal Width b2	Working Load Limit (t)	Weight/m (kg/m)	Testing Load (KN)	Min.Breaking Load (KN)	Elongation at Break (%)
	24	72	74.2	69.8	31.2	88.8	18	12.78	452	723.8	≥20
	34	102	105.1	98.9	44.2	125.8	36.3	25.5	907	1453
	38	114	117.4	110.6	49.4	140.6	45	32	1134	1815
	42	126	129.8	122.2	54.6	155.4	55	38.6	1385	2217
	48	144	148.3	139.7	62.4	177.6	72.4	50.66	1809	2895
	52	156	160.7	151.3	67.6	192.4	85	59.6	2123	3398
	8	24	24.7	23.3	10.4	29.6	2	1.38	50.3	80.4
	10	30	30.9	29.1	13	37	3.15	2.2	78.5	126
	13	39	40.2	37.8	16.9	48.1	5.3	3.8	133	212
	16	48	49.4	46.6	20.8	59.2	8	5.63	201	322
	18	54	55.6	52.4	23.4	66.6	10	7.3	254	407
	19	57	58.7	55.3	24.7	70.3	11.2	8.1	283	454
	20	60	61.8	58.2	26	74	12.5	8.6	314	503
	22	66	68	64	28.6	81.4	15	10.2	380	608
	23	69	71.1	66.9	29.9	85.1	16	12	415	665
	25	75	77.3	72.8	32.5	92.5	20	14.1	491	785
	26	78	80.3	75.7	33.8	96.2	21.2	15.2	531	849
	28	84	86.5	81.5	36.4	104	25	17.6	706	985
	32	96	98.9	93.1	41.6	118	31.5	23	804	1290
	36	108	111	104.8	46.8	133	40	29	1020	1630
	40	120	124	116.4	52	148	50	36	1260	2010
	45	135	139	131	58.5	167	63	45.5	1590	2540
	1. Application area: lifting
	2. Standard: EN818-2
	3. Strength grade: 8

Lifting Chain
	Diameter dn	Out Length L (mm)		Width of un-weld (mm)		Working Load Limit（t）	Weight/m (kg/m)	Proof testing load(kg/m)	Manufacturing Vertification (KN)	Min.Breaking Load (KN)	Elongation at Break (%)
	Diameter dn	Max	Min	Minimum Inner Width W1	Maximum Extemal Width W	Working Load Limit（t）	Weight/m (kg/m)	Proof testing load(kg/m)	Manufacturing Vertification (KN)	Min.Breaking Load (KN)	Elongation at Break (%)
	6	30	28	7.5	21	1.1	0.8	22.7	27	45.4	≥17
	7	35	33	8.8	25	1.5	1.1	30.8	37	61.6
	8	40	38	10	28	2	1.38	40.3	48	80.6
	9	45	43	11.3	32	2.5	1.82	51	61	102
	10	50	48	12.5	35	3.2	2.2	63	76	126
	12	60	57	15	42	4.6	3.1	91	109	182
	14	70	66	18	49	6.3	4.13	124	149	248
	16	80	76	20	56	8	5.63	161	193	322
	18	90	85	23	63	10	6.85	204	245	408
	20	100	95	25	70	12.5	8.6	252	302	504
	22	110	104	28	77	15.5	10.2	305	366	610
	23	115	109	29	81	16.9	12	333	400	666
	25	125	119	32	88	20	14.1	393	472	786
	26	130	123	33	91	21.6	14.87	425	510	850
	28	140	133	35	98	25	17.6	493	592	986
	30	150	142	38	105	28.8	19.6	566	679	1132
	32	160	152	40	112	32	23	644	773	1288
	36	180	171	45	126	40	29	815	978	1630
	40	200	190	50	140	50	36	1006	1207	2012
	45	225	214	57	158	63	45.5	1273	1528	2546
	Any surface treatment will reduce the mechanical properties of the chain to varying degree, so we will not have surface treatment unless the customer requests.

Package

JULI standard export package: Iron drum or Customized packaging according to customer needs

Chain

Certifications: CE ISO CNAS

Manufacturing Process

Chain sling factory mainly produce high-tensile lifting chain, high-tensile chain sling, round link chain and steel compact chain for scraper conveyor and auxiliary part for mine chain. Produced in accordance with the standard of EN818-2, GB/T24816-2009, GB/T12718-2009, Q/JL018-2012. Production range is Ф6-Ф48mm.

Export Cases

-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions:2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 OTC America.

Lifting Chain

FAQ

Q1：Are you factory or business company?

Juli Sling is an OEM&ODM manufacturer with nearly 38 years of history. Focusing on research and development and manufacturing of rigging.

Q2：What is your terms of delivery?

Accept EXW, FOB, CIF, etc. If you have any other choices or requirements, we could negotiate it together to help you find the most convenient and favorable one.

Q3：How does your factory do regarding quality control?

Quality is priority. We always attach great importance to quality controlling. Skillful workers care every details during the production; Strict quality testing in each process; Authoritative testing reports can be provided for customer.

Q4：What payment method is available?

By T/T, L/C, Other methods can be negotiated together.
