Introduce: Metallurgy Clamp

JULI METALLURGY CLAMP FACTORY specializing in designing, researching and developing. and manufacturing kinds of clamp which could be used in various environments, including mechanical clamps, motor-driven clamps, hydraulic clamps, etc. The product range is 1t - 1000t working load.

Description:

JULI Metallurgy clamp factory specializing in designing, researching and developing and manufacturing kinds of clamp which could be used in various environments.

Equipment: There are 150 sets of large processing machineries includingφ200 NC floor type borer, 4x8m CNC planer type milling machine, etc.

Product category: Mechanical clamps, Motor-driven clamps, Hydraulic clamps, Electric slab clamp, Medium plate clamp, Rollover clamp, Oil drum clamp, etc.

The product range is 1t -1000t working load.

Customized Service: Products could be designed per user requirement.

Annual capacity: More than 6000t.

Usage: Widely used in metallurgy industry, port operation, storage handling and other industries.

Inquire Now

Main Features:

There are 150 sets of large processing machineries including φ200 NC floor type borer, 4x8m CNC planer type milling machine, etc. And products could be designed per user requirement.

Product Usage:

It is widely used in the continuous casting workshop of steel works in iron and steel metallurgy industry, slab storehouse of hot rolling mill, and the handling and loading of slabs at stations, freight yards and docks in the transportation industry.

Metallurgy Clamp

Specifications

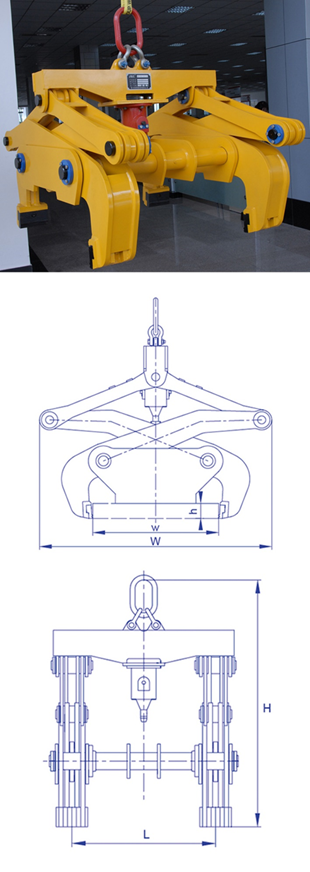

SLAB CLAMP
	WLL(t)	Application scope(W) (mm)	Height of leg(H) (mm）	Span(L) (mm)	Max. dimension (mm)
	WLL(t)	Application scope(W) (mm)	Height of leg(H) (mm）	Span(L) (mm)	W	H
	5	450-600	150	800	1200	1800
	5	650-1000	250	800	1500	2300
	8	150-450	250	1200	2000	2400
	8	450-600	300	1200	1600	2500
	8	450-750	300	1200	1600	2200
	10	450-900	300	1500	1900	2600
	10	650-1000	300	1500	2000	2600
	10	700-1100	300	1500	1900	2600
	12	450-750	300	2000	1800	2400
	12	235-800	300	2000	2300	3000
	16	600-1100	450	2500	2400	3100
	16	850-1250	300	2500	2000	3000
	20	800-1300	300	3000	2200	3400
	20	950-1400	300	3000	2500	3500
	20	1100-1600	300	3000	2400	3700
	25	1000-1600	600	3000	3000	3900
	25	1250-1750	450	3000	2800	3900
	32	700-1350	450	3000	2900	4000
	32	750-1400	450	3000	2800	4200
	32	650-1500	450	3000	3400	4600
	32	900-2150	600	3000	4400	6000
	32	1000-2300	600	3000	4700	6300
	40	850-1600	450	4000	3500	4900
	40	1250-1750	450	3500	3000	3000
	40	1600-2150	450	3500	3300	4300
	50	1250-2150	450	4000	4000	5600
	50	1850-2500	450	4000	3800	5000
	63	2050-2750	600	4000	4300	5800
	1.Material for the clamp reasonable selected per user requirement to sastisfy the self weight of the clamp.
	2.The lifting eye is assemblied, which is very convenient and prevent it from falling apart.
	3.The clamp is used for single-hook crane, and custom design is available.

ELECTRIC SLAB CLAMP
	WLL(t)	Application scope(W) (mm)	Height of leg(H) (mm）	Max. dimension (mm)		istance betweenthe lifting point (mm)	Height of leg(H) (mm）
				W	H
	32	1800-2400	1600	3600	5500	2400	700
	32	1350-2300	1730	3500	4500	2400	450
	50	1500-2400	1600	4000	5600	2700	750
	1.Locked by the self weight of the load, open and shut the jaw by the winding control system.
	2.Custom design is available.
	3.Suitable for lifting multilayer slab, which could be used in impending operation.

SQUARE BILLET CLAMP
	WLL(t)	Application scope(W) (mm)	Max. thicknessof the plate (H)mm	Span(L) (mm)	Max. dimension (mm)
	WLL(t)	Application scope(W) (mm)	Max. thicknessof the plate (H)mm	Span(L) (mm)	W	H
	3	100-300	60	800	1200	1600
	5	100-300	70	800	1200	1800
	5	170-350	80	800	1300	1800
	5	450-600	100	800	1200	1800
	5	650-1000	140	800	1500	2300
	8	150-450	90	1200	2000	2400
	8	450-600	110	1200	1600	2500
	8	450-750	130	1200	1600	2200
	10	450-900	140	1500	1900	2600
	10	650-1000	150	1500	2000	2600
	10	700-1100	160	1500	1900	2600
	12	450-750	120	2000	1800	2400
	12	235-800	150	2000	2300	3000
	16	450-750	120	2500	2000	2700
	16	450-900	140	2500	2100	3000
	16	650-1000	150	2500	2000	2700
	16	600-1100	190	2500	2400	3100
	16	850-1250	160	2500	2000	3000
	20	700-1100	150	3000	2200	3200
	20	800-1300	170	3000	2200	3400
	20	950-1400	160	3000	2500	3500
	1.Lever type working principle makes it with simple structure, flexible movement, safe and reliable during the lifting. Locked by the self weight of the load, open and shut the jaw automatically by the shutter.
	2.The clamp is used for single-hook crane, and custom design is available.
	3.The height (thickness) of the square billet is required when placing the order.

VERTICAL STEEL COIL LIFTING CLAMP (ENDLESS WIRE ROPE SLING TYPE)
	WLL(t)	Inner Dia.of the steel coil (mm)	Application scope(W) (mm)	Max. dimension (mm)
	WLL(t)	Inner Dia.of the steel coil (mm)	Application scope(W) (mm)	W	H
	12.5	φ500	200-400	1300	2600
	16	φ500	250-600	1500	2700
	32	φ550	550-750	1900	2600
	32	φ760	350-650	1900	2800
	1.Used for lifting vertical steel coil, open and shut the jaw by replace the lifting position.
	2.There is a little tilted during the lifting.

VERTICAL STEEL COIL LIFTING CLAMP (ROD GRAB TYPE)
	WLL(t)	Inner Dia.of the steel coil (mm)	Application scope(W) (mm)	Max. dimension (mm)
				W	H
	6	φ450	400-500	2200	2400
	20	φ450	150-450	2200	3100
	32	φ450	350-700	2250	3050
	1.Used for lifting vertical steel coil. Lever type working principle makes it with simple structure, flexible movement, safe and reliable during the lifting.
	2.Locked by the self weight of the load, open and shut the jaw automatically by the shutter.

ROUND STEEL CLAMP
	WLL(t)	Application scope(φ) (mm)	Opening Dimension (mm)	A(mm)	B(mm)	C(mm)	D(mm)
	1	φ50-φ100	105	60	20	12	66
	1	φ100-φ160	170	80	28	14	84
	2	φ80-φ130	145	100	30	20	94
	2	φ100-φ200	210	100	30	20	130
	3	φ120-φ220	240	120	45	20	138
	3	φ160-φ250	270	120	45	20	138
	5	φ200-φ320	340	140	40	25	165
	5	φ250-φ400	440	160	50	25	165
	6	φ300-φ500	530	200	60	25	175
	1.Clamp the middle of the round steel, open and shut the jaw by manual control, lifting the round steel horizontally.
	2.Used for lifting the round steel horizontally.

Export Cases

-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions: 2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 OTC America.

Metallurgy Clamp

FAQ

Q1：Are you factory or business company?

Juli Sling is an OEM&ODM manufacturer with nearly 38 years of history. Focusing on research and development and manufacturing of rigging.

Q2：What is your terms of delivery?

Accept EXW, FOB, CIF, etc. If you have any other choices or requirements, we could negotiate it together to help you find the most convenient and favorable one.

Q3：How does your factory do regarding quality control?

Quality is priority. We always attach great importance to quality controlling. Skillful workers care every details during the production; Strict quality testing in each process; Authoritative testing reports can be provided for customer.

Q4：What payment method is available?

By T/T, L/C, Other methods can be negotiated together.
