Introduce: Eye Hook

The type pf product is Eye Hook. Its self-weight is in the range of 0.28t - 9.82t. Its structural parameters have been carefully calculated. If you wanna learn more details please see the following specifications.

Description:

1. Product category: Eye hook

2. Material: The hook body is manufactured with high-quality alloy steel by die forging.

3. Specifications: With full range of product specification, working capacity: 0.75t-15t (meet different hoisting requirements with various types).

4. Manufacture with prescision drop forging, heat treatment and surface treatment process.

5. Proof load is twice of the Working Load Limit. Minimum Ultimate Load is 4 times of the Working Load Limit.

6. Usage: Used as connection between the slings or between the sling and the suspended in the lifting, bunding, draging and fastening operation.

Inquire Now

Main Features:

We have authoritative certificates or standard: DNV·GL, CE, CNAS, TUV

We cover a land area about 357,855㎡, with over 3,000 sales. The amount of exports exceeds USD 46,000,000 per year.

Three major operational centers are being in service at our headquarters, Technology R & D Center, Production Center, Quality Control & Testing Center. The Technology R&D Center has 234 scientific and technological staff.

Product Usage:

Product use: Used as connection between the slings or between the sling and the suspended in the lifting, bunding, draging and fastening opearation.

Hook

Specifications

Eye Hook
	Working Load Limit(t)		A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	K (mm)	L (mm)	Self Weight (kg)
	S(6)/320C	T(8)/320A	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	K (mm)	L (mm)	Self Weight (kg)
	0.75	1	24.5	23	19	19	9	16	85	0.28
	1	1.5	26	23	21	23	10.5	18	96.5	0.41
	1.5	2	29	25.5	25.5	29	12.5	22	108	0.67
	2	3	31	28	29	32	14.5	24	123	0.95
	3	5	38	34.5	36.5	40	18	33	150	1.99
	5	7	46.5	41	46	51	23	42	190	3.81
	7.5	11	56.5	53	57	62	28	48	232.5	6.85
	10	15	63	58	66	72	32.5	56	259.5	9.82

Eye Hook
	Working load limit (t)	A (mm)	C (mm)	D (mm)	E (mm)	K (mm)	L (mm)	Self Weight (kg)
	0.5	22	22	16	12	12	80	0.24
	1	30	27	20	17	20	96	0.7
	2	31	30	25	20	21	110	1.3
	3	40	53	32	25	31	154	2.8
	5	50	56	40	27	36	184	3.3
	8	56	61	40	30	38	205	5.7
	10	56	66	40	30	42	215	6.7
	15	105	94	70	45	70	302	21.5
	37	108	118	115	57	85	462.5	46

Package

JULI standard export package: Packing bag and Carton, Customized packaging according to customer needs

Hook

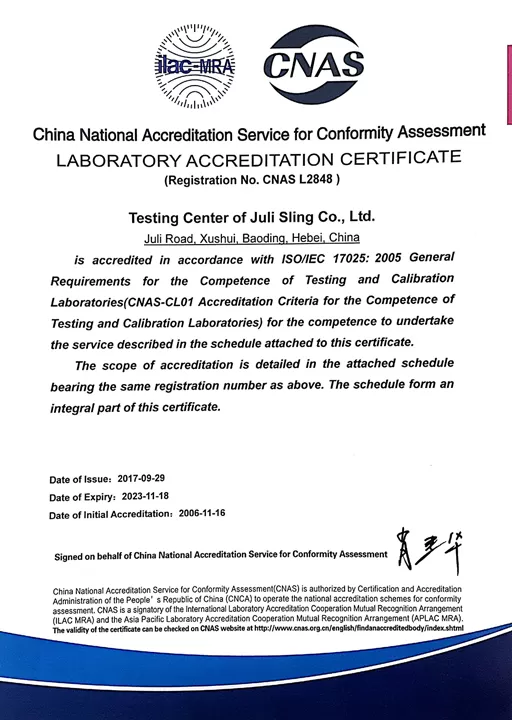

Certifications: CNAS ISO

Manufacturing Process

The hook body is manufactured with high-quality alloy steel by die forging, heat treatment.

There are signs such as WORKING LOAD LIMIT and product grade on the link.

Manufacture with prescision drop forging, heat treatment and surface treatment process.

Export Cases

-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions:2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 OTC America.

Eye Hook

FAQ

Q1：Are you factory or business company?

Juli Sling is an OEM&ODM manufacturer with nearly 38 years of history. Focusing on research and development and manufacturing of rigging.

Q2：What is your terms of delivery?

Accept EXW, FOB, CIF, etc. If you have any other choices or requirements, we could negotiate it together to help you find the most convenient and favorable one.

Q3：How does your factory do regarding quality control?

Quality is priority. We always attach great importance to quality controlling. Skillful workers care every details during the production; Strict quality testing in each process; Authoritative testing reports can be provided for customer.

Q4：What payment method is available?

By T/T, L/C, Other methods can be negotiated together.
