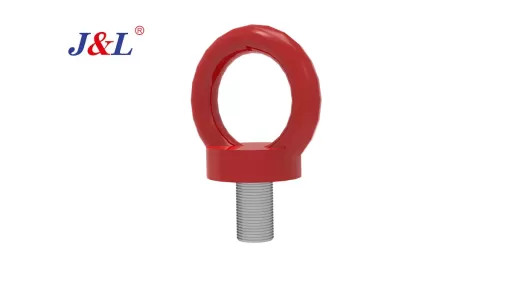

Introduce: Machinery Eye Bolts

Description:

1. Product category: Machinery Eye Bolts.

2. Material: For the bolt of ring: M8-M64:Alloy steel foging,M72-M100: Alloy steel welded.

3. Specifications: With full range of product specification, working capacity: 0.16t-40t, can meet different hoisting requirements with various types.

4. Proof load is twice of the Working Load Limit. Minimum Ultimate Load is 4 times of the Working Load Limit.

5. Profile size and the test should be according to ISO3266-1984 and GB825-88.

6. Usage: Used as connection between the slings or between the sling and the suspended in the lifting, bunding, draging and fastening operation.

Inquire Now

Main Features:

Manufacture with prescision drop forging, heat treatment and surface treatment process.

With full range of product specification, working capacity:0.16t - 40t, we can meet different hoisting requirements with various types.

Product Usage:

Product use: Used as connection between the slings or between the sling and the suspended in the lifting, bunding, draging and fastening opearation.

Hook

Specifications

Machinery Eye Bolts
	Art. No.	Working load limit (t)	d (mm)	L (mm)	D (mm)	E (mm)	F (mm)	Self Weight (kg)
	M8	0.16	M8	16	20	21	9	0.04
	M10	0.25	M10	20	24	25	11	0.08
	M12	0.4	M12	22	28	29	13	0.13
	M16	0.63	M16	28	34	35	15	0.23
	M20	1	M20	35	40	41	17	0.39
	M24	1.6	M24	40	48	49	21	0.71
	M30	2.5	M30	45	56	57	25	1.21
	M36	4	M36	55	67	69	30	2
	M42	6.3	M42	65	80	82	34	3.07
	M48	8	M48	70	95	97	40	4.95
	M56	10	M56	80	112	114	44	7.16
	M64	16	M64	90	125	128	51	10.38
	M72X6	20	M72	100	140	143	63	17.76
	M80X6	25	M80	115	160	163	71	25.89
	M100X6	40	M100	140	200	204	79	40.27

Package

JULI standard export package: Packing bag and Carton, Customized packaging according to customer needs

Hook

Certifications: CNAS ISO

Manufacturing Process

Manufacture with prescision drop forging, heat treatment and surface treatment process. The hook body is manufactured with high-quality alloy steel by die forging, heat treatment. There are signs such as WORKING LOAD LIMIT and product grade on the link.

Export Cases

-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions:2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 OTC America.

Machinery Eye Bolts
