The product doesn't have ratchet, and only possesses one hook. We can provide you customized service. See the parameters below for details.
Flat Hook Tie Down Straps Description:
Model Number: LS06
Breaking Load: 15000ibs-16500ibs
Width: 4''
Safety factor: 2:1 3:1
The material of belt: Polyester, Polypropylene, and Nylon.
Hook: Swan hook, Flat hook, S hook, Triangle hook, Single J hook, Flat safety hook, Closed double J hook, Open double J hook and Eye hook. (You can choose according to your requirement. ) Galvanized/Dipping plastic.
Standard: Standard EN 12195-2:2000, AS/NZS438, American standard.
Brand Name: J&L
Place of Origin: Hebei, China
Customized Service: Support customized service. Able to supply different kinds of protecting measures according to different using requirement.
Characteristics: High tension, low elongation, small volume, light weight, easy to operate, safe and convenient to bring.
Usage: Widely used in lashing, tying and even self rescue of trailer during transportation.
Flat Hook Tie Down Straps Features:
Ratchet straps, also known as tie-down straps or cargo straps, are popular tools for securing and restraining loads during transportation.
Ratchet straps are typically made of strong and durable materials like nylon or polyester. These materials provide sufficient tensile strength to hold heavy loads.
Ratchet straps feature a ratcheting mechanism that allows for easy tightening and securing of the strap. The ratchet mechanism usually consists of a handle, a hook, and two straps.
Flat Hook Tie Down Straps Applications:
Ratchet straps, also known as tie-down straps or cargo straps, are popular tools for lashing, tying, securing and restraining loads during transportation.
Flat Hook Tie Down Straps Specifications
| LS06 Type(Flat Hook Tie Down Straps) | Art. No. | Breaking Load (ibs) | Width (inch) | Total Length (m) |
 | LS06-068 | 15000 | 4" | 6~12 |
| LS06-075 | 16500 | 4" | 6~12 | |
| End fittings are changeable according to different requirement. | ||||
| End Fitting | |||||||||
| Swan Hook | |||||||||
  | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| SWH001 | 2 '' | 5000 | 53 | 85 | 40 | 9 | Galv. | LS01 | |
| SWH002 | 1 1/2'' | 3000 | 38 | 80 | 40 | 9 | Galv. | LS01 | |
| SWH003 | 1'' | 1500 | 28 | 60 | 20 | 5.5 | Galv. | LS01 | |
| Flat Hook | ||||||||||||
 | Art. No. | Size | Breaking Load (ibs) | Dimension (mm) | Surface | Suitability | Note | |||||
| A | B | C | d | E | L | |||||||
| FH001-01 | 4'' | 17000 | 70 | 95 | 6 | 17 | 45 | 93 | Galv. | LS05,LS06 | Steel or Aluminium safety latch is available | |
| FH002-01 | 2'' | 10000 | 48 | 66 | 4.5 | 17 | 45 | 92 | Galv. | LS05 | ||
| S Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| D1 | D2 | D3 | H | ||||||
| VSH001 | 1'' | 1500 | 25 | 25 | 12 | 120 | Dipping Plastic | LS02 | |
| VSH002 | 1'' | 1000 | 22 | 23 | 12 | 95 | LS02,LS03 | ||
| VSH003 | 1'' | 1000 | 22 | 25 | 10 | 120 | LS02 | ||
| VSH004 | 1'' | 800 | 25 | 25 | 9 | 102 | LS02 | ||

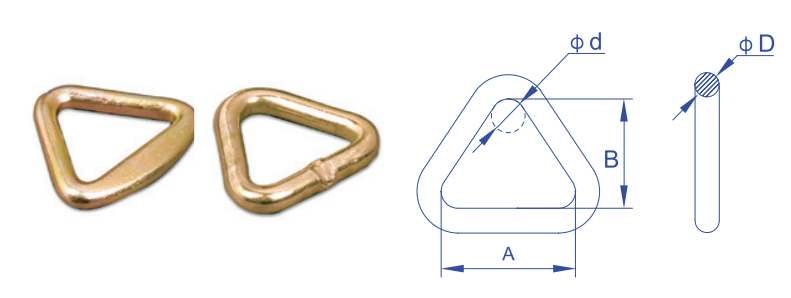

| Triangle Ring | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| A | B | d | D | ||||||
| VR001 | 4'' | 20000lbs | 102 | 88 | 20 | 18 | Galv. | LS01 | |
| VR002 | 3'' | 18000lbs | 77 | 62 | 16 | 11.7 | Galv. | LS01 | |
| VR003 | 2'' | 5000 | 52 | 62 | 15 | 11.5 | Galv. | LS01 | |
| VR004 | 1 1/2'' | 3000 | 38 | 50 | 16 | 9.5 | Galv. | LS01 | |
| Single J Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | d | D | ||||||
| SJH001-01 | 2'' | 5000 | 53 | 120 | 50 | 20 | 16 | Galv. | LS01 | |
| SJH001-02 | 2'' | 3000 | 52 | 123 | 50 | 20 | 12 | Galv. | LS01 | |
| SJH002 | 1 1/2'' | 3000 | 40 | 100 | 50 | 16 | 12 | Galv. | LS01 | |
| Flat Safety Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | D | E | ||||||
| SNH002-01 | 2'' | 2700 | 50 | 3 | 80 | 24 | 110 | Galv. | LS01 | |
| SNH002-02 | 2'' | 4500 | 51 | 5 | 120 | 25 | 153 | Galv. | LS01 | |
| TSNH001 | 2'' | 4500 | 51 | 6 | 118 | 25 | 118 | Galv. | LS01 | |
| Closed Double J Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | d | D | ||||||
| WH001 | 4'' | 10000 | 103 | 140 | 52 | 22 | 17 | Galv. | LS01 | |
| WH002 | 3'' | 10000 | 77 | 136 | 45 | 20 | 16 | Galv. | LS01 | |
| WH003-01 | 2'' | 5000 | 52 | 85 | 38 | 20 | 11.7 | Galv. | LS01 | |
| WH003-02 | 2'' | 5000 | 52 | 108 | 36 | 20 | 11.7 | Galv. | LS01 | |
| WH003-04 | 2'' | 4000 | 52 | 85 | 35 | 19 | 11 | Galv. | LS01 | |
| WH003-05 | 2'' | 3000 | 52 | 85 | 35 | 20 | 9.5 | Galv. | LS01 | |
| WH003-06 | 2'' | 680 | 52 | 72 | 30 | 25 | 6.5 | Galv. | LS01 | |
| WH004-01 | 1 1/2'' | 3000 | 38 | 65 | 30.5 | 17 | 9.5 | Galv. | LS01 | |
| WH004-02 | 1 1/2'' | 3000 | 38 | 86 | 35 | 18 | 9.5 | Galv. | LS01 | |
| WH004-03 | 1 1/2'' | 2000 | 38 | 65 | 30 | 18 | 8.5 | Galv. | LS01 | |
| WH005-01 | 1 1/16'' | 1500 | 28 | 58 | 28 | 17 | 7 | Galv. | LS01 | |
| WH006 | 1'' | 800 | 27 | 47 | 21 | 11 | 6.5 | Galv. | LS01 | |
| Open Double J Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| A | B | d | D | ||||||
| UH001 | 3'' | 10000 | 77 | 88 | 20 | 18 | Galv. | LS01 | |
| UH002-01 | 2'' | 5000 | 52 | 62 | 16 | 11.7 | Galv. | LS01 | |
| UH002-02 | 2'' | 4000 | 52 | 62 | 15 | 11.5 | Galv. | LS01 | |
| UH003 | 1 1/2'' | 3000 | 39 | 50 | 16 | 9.5 | Galv. | LS01 | |
| Eye Hook | |||||||||||||
 | Art. No. | Self Weight (kg) | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||||||
| A | B | C | d1 | d2 | d3 | E | F | ||||||
| EH001 | 320 | 5000 | 55 | 22 | 18 | 17 | 8 | 19 | 55 | 15 | Galv. | Traction belt for car | |
| EH002 | 240 | 3000 | 55 | 22 | 18 | 17 | 8 | 19 | 55 | 15 | Galv. | ||
Customized Packaging
JULI standard export package: Heat shrinking film packaging + Carton + Pallet
Customized packaging according to customer needs
Certifications: ISO CE GS
Manufacturing Process
Production capacity: Breaking load from 0.25t till 10t, width from 25mm till 100mm are available.We are able to supply different kinds of protecting measures according to different using requirement.
Production process：Raw Materials—Weaving—Dyeing—Taping—Sewing —Repair and iron—Testing—Packing
Export Cases
-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions:2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 America.
When it comes to securing your cargo during transportation, ratchet straps are a game-changer. Specifically, ratchet tie-downs offer unmatched strength, adjustability, and reliability, making them an indispensable tool for cargo securing needs. At Juli slings, we take pride in manufacturing and supplying high-quality ratchet tie-downs that meet the demands of various industries. Choose our exceptional products and experience the peace of mind that comes with secure and efficient cargo transport. Contact us today to explore our range of ratchet tie-downs and unlock the power of unrivaled quality and performance.
FAQ
Q1：Are you factory or business company?
Juli Sling is an OEM&ODM manufacturer with nearly 38 years of history. Focusing on research and development and manufacturing of rigging.
Q2：What is your terms of delivery?
Accept EXW, FOB, CIF, etc. If you have any other choices or requirements, we could negotiate it together to help you find the most convenient and favorable one.
Q3：How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality controlling. Skillful workers care every details during the production; Strict quality testing in each process; Authoritative testing reports can be provided for customer.
Q4：What payment method is available?
By T/T, L/C, Other methods can be negotiated together.
Catalogue
Download Document
Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours.
