The ratchet straps have S hook and Cam Buckle. The end fitting can be selected. The color, length, beltwidth and break load of the ratchet strap can be customized. We can customize the suitable solution according to your needs and uses. See the following specification table for detailed parameters.
Description:
Model Number: LS03
Breaking Load: 0.25T-0.3T
The width of belt: 25mm or customized.
The material of belt: Polyester, Polypropylene, and Nylon.
Ratchet: Cam buckle. Galvanized.
Hook: S hook or customized. Dipping plastic.
Brand Name: J&L
Place of Origin: Hebei, China
Customized Service: Support customized service. Able to supply different kinds of protecting measures according to different using requirement.
Standards: Perform with standard EN 12195-2, AS/NZS438, American standard
Safety Factor: 2:1 3:1
Certifications: CE, GS
Characteristics: high tension, low elongation, small volume, light weight, easy to operate, safe and convenient to bring
Usage: Widely used in lashing, tying and even self rescue of trailer during transportation.
Main Features:
Ratchet straps are designed to provide a reliable and secure means of tying down and securing cargo during transport or storage.
They are versatile and commonly used for securing cargo, equipment, or loads in various settings.
Cam buckles are specifically designed to hold the strap in place once tension is applied. They feature a lever or cam that locks the strap securely without the need for excessive force or knots. The cam buckle provides convenience and ease of use.
Applications:
Ratchet straps with cam buckles are popular securing and fastening tools used for a variety of applications.
Specifications
| LS03 Type | Art. No | Breaking Load (kg) | Width (mm) | Total Length (m) | ||
  | LS03-0025 | 250 | 25 | 6~12 | ||
| LS03-003 | 300 | 25 | 6~12 | |||
| Note: End fittings are changeable according to different requirement. | ||||||
| End Fitting | ||

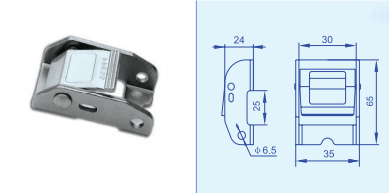

| Cam Buckle (Unit: mm) | ||
 |  |  |
| Type: CB001 Size: 2" Breaking Load: 1500 kg Suitable for LS03 ratchet tie down Galvanized | Type: CB002-01 Size: 1" Breaking Load: 1200 kg Suitable for LS03 ratchet tie down Galvanized | Type: CB002-02 Size: 1" Breaking Load: 700 kg Suitable for LS03 ratchet tie down Galvanized |
 |  |  |
| Type: CB002-03 Size: 1" Breaking Load: 500 kg Suitable for LS03 ratchet tie down Galvanized | Type: CB002-04 Size: 1" Breaking Load: 400 kg Suitable for LS03 ratchet tie down | Type: CB002-05 Size: 1" Breaking Load: 500 kg Suitable for LS03 ratchet tie down Galvanized |
| End Fitting | |||||||||
| Swan Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| SWH001 | 2 '' | 5000 | 53 | 85 | 40 | 9 | Galv. | LS01 | |
| SWH002 | 1 1/2'' | 3000 | 38 | 80 | 40 | 9 | Galv. | LS01 | |
| SWH003 | 1'' | 1500 | 28 | 60 | 20 | 5.5 | Galv. | LS01 | |
| Flat Hook | ||||||||||||
 | Art. No. | Size | Breaking Load (ibs) | Dimension (mm) | Surface | Suitability | Note | |||||
| A | B | C | d | E | L | |||||||
| FH001-01 | 4'' | 17000 | 70 | 95 | 6 | 17 | 45 | 93 | Galv. | LS05,LS06 | Steel or Aluminium safety latch is available | |
| FH002-01 | 2'' | 10000 | 48 | 66 | 4.5 | 17 | 45 | 92 | Galv. | LS05 | ||
| S Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| D1 | D2 | D3 | H | ||||||
| VSH001 | 1'' | 1500 | 25 | 25 | 12 | 120 | Dipping Plastic | LS02 | |
| VSH002 | 1'' | 1000 | 22 | 23 | 12 | 95 | LS02,LS03 | ||
| VSH003 | 1'' | 1000 | 22 | 25 | 10 | 120 | LS02 | ||
| VSH004 | 1'' | 800 | 25 | 25 | 9 | 102 | LS02 | ||
| Triangle Ring | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| A | B | d | D | ||||||
| VR001 | 4'' | 20000lbs | 102 | 88 | 20 | 18 | Galv. | LS01 | |
| VR002 | 3'' | 18000lbs | 77 | 62 | 16 | 11.7 | Galv. | LS01 | |
| VR003 | 2'' | 5000 | 52 | 62 | 15 | 11.5 | Galv. | LS01 | |
| VR004 | 1 1/2'' | 3000 | 38 | 50 | 16 | 9.5 | Galv. | LS01 | |
| Single J Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | d | D | ||||||
| SJH001-01 | 2'' | 5000 | 53 | 120 | 50 | 20 | 16 | Galv. | LS01 | |
| SJH001-02 | 2'' | 3000 | 52 | 123 | 50 | 20 | 12 | Galv. | LS01 | |
| SJH002 | 1 1/2'' | 3000 | 40 | 100 | 50 | 16 | 12 | Galv. | LS01 | |
| Flat Safety Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | D | E | ||||||
| SNH002-01 | 2'' | 2700 | 50 | 3 | 80 | 24 | 110 | Galv. | LS01 | |
| SNH002-02 | 2'' | 4500 | 51 | 5 | 120 | 25 | 153 | Galv. | LS01 | |
| TSNH001 | 2'' | 4500 | 51 | 6 | 118 | 25 | 118 | Galv. | LS01 | |
| Closed Double J Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | d | D | ||||||
| WH001 | 4'' | 10000 | 103 | 140 | 52 | 22 | 17 | Galv. | LS01 | |
| WH002 | 3'' | 10000 | 77 | 136 | 45 | 20 | 16 | Galv. | LS01 | |
| WH003-01 | 2'' | 5000 | 52 | 85 | 38 | 20 | 11.7 | Galv. | LS01 | |
| WH003-02 | 2'' | 5000 | 52 | 108 | 36 | 20 | 11.7 | Galv. | LS01 | |
| WH003-04 | 2'' | 4000 | 52 | 85 | 35 | 19 | 11 | Galv. | LS01 | |
| WH003-05 | 2'' | 3000 | 52 | 85 | 35 | 20 | 9.5 | Galv. | LS01 | |
| WH003-06 | 2'' | 680 | 52 | 72 | 30 | 25 | 6.5 | Galv. | LS01 | |
| WH004-01 | 1 1/2'' | 3000 | 38 | 65 | 30.5 | 17 | 9.5 | Galv. | LS01 | |
| WH004-02 | 1 1/2'' | 3000 | 38 | 86 | 35 | 18 | 9.5 | Galv. | LS01 | |
| WH004-03 | 1 1/2'' | 2000 | 38 | 65 | 30 | 18 | 8.5 | Galv. | LS01 | |
| WH005-01 | 1 1/16'' | 1500 | 28 | 58 | 28 | 17 | 7 | Galv. | LS01 | |
| WH006 | 1'' | 800 | 27 | 47 | 21 | 11 | 6.5 | Galv. | LS01 | |
| Open Double J Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| A | B | d | D | ||||||
| UH001 | 3'' | 10000 | 77 | 88 | 20 | 18 | Galv. | LS01 | |
| UH002-01 | 2'' | 5000 | 52 | 62 | 16 | 11.7 | Galv. | LS01 | |
| UH002-02 | 2'' | 4000 | 52 | 62 | 15 | 11.5 | Galv. | LS01 | |
| UH003 | 1 1/2'' | 3000 | 39 | 50 | 16 | 9.5 | Galv. | LS01 | |
| Eye Hook | |||||||||||||
 | Art. No. | Self Weight (kg) | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||||||
| A | B | C | d1 | d2 | d3 | E | F | ||||||
| EH001 | 320 | 5000 | 55 | 22 | 18 | 17 | 8 | 19 | 55 | 15 | Galv. | Traction belt for car | |
| EH002 | 240 | 3000 | 55 | 22 | 18 | 17 | 8 | 19 | 55 | 15 | Galv. | ||
Customized Packaging
JULI standard export package: Heat shrinking film packaging + Carton + Pallet
Customized packaging according to customer needs
Certifications: ISO CE GS
Manufacturing Process
Production capacity: Breaking load from 0.25t till 10t, width from 25mm till 100mm are available.We are able to supply different kinds of protecting measures according to different using requirement.
Production process：Raw Materials—Weaving—Dyeing—Taping—Sewing —Repair and iron—Testing—Packing
Export Cases
-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions:2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 America.
