AS/NZS 4380:2001 Compliant Ratchet Tie Downs for Australia

Technical Excellence

• Standard-Compliant Labeling : Every Juli Ratchet Strap is equipped with a permanently stitched, weather-resistant blue label stating the Lashing Capacity (LC), material, and the AS/NZS 4380:2001 reference. This ensures full compliance during roadside inspections by Australian transport authorities.

• UV-Stabilized High-Tenacity Polyester: Specifically engineered for the harsh Australian sun. Our 100% high-tenacity polyester webbing is UV-stabilized to prevent fiber degradation and color fading, maintaining its strength even after years of exposure in the Outback.

• Low-Stretch & High-Tension: Proprietary heat-setting processes minimize webbing stretch to less than 7% at LC, reducing the need for constant re-tensioning during long-haul transits between states (e.g., Perth to Sydney).

• Reinforced Edge Weaving: The webbing edges are reinforced to resist fraying and abrasion from sharp cargo edges or rough truck rails, significantly extending the service life.

AU-Standard

Webbing Width (mm)	Lashing Capacity (LC)	Standard Lengths (m)	Hook Type (AU Specs)	Standard
25mm	500kg – 750kg	4m / 6m	S-Hook / J-Hook	AS/NZS 4380
35mm	1500kg – 2000kg	6m	J-Hook / Wing Hook	AS/NZS 4380
50mm (Standard)	2500kg	9m / 11m / 13m	Wing Hook / Flat Hook	AS/NZS 4380
75mm / 100mm	5000kg+	Customized	Heavy Duty Grade 70	AS/NZS 4380

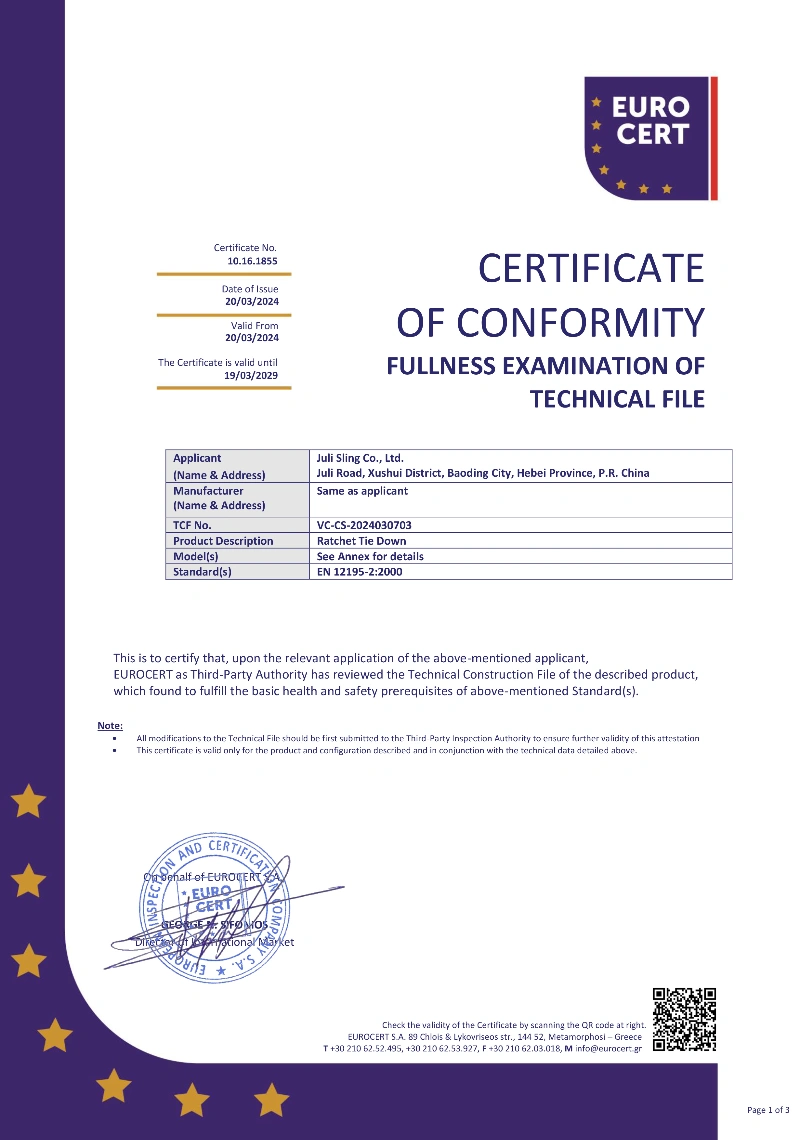

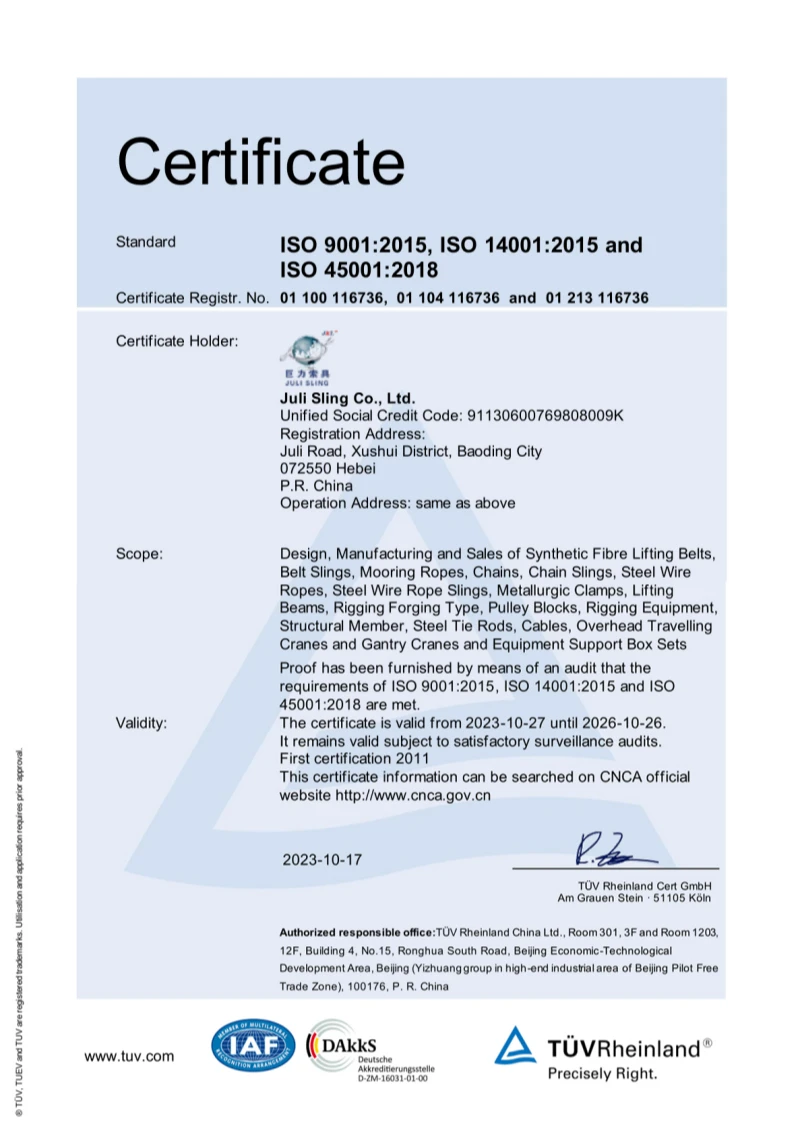

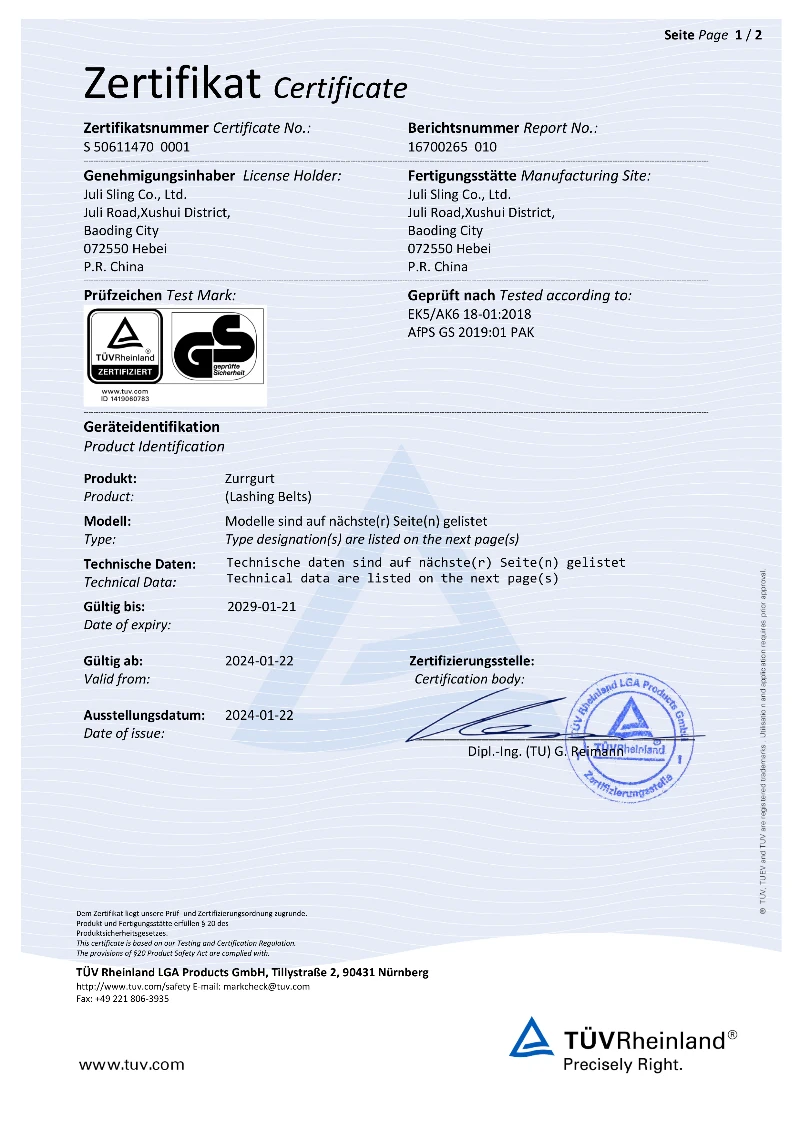

Certifications

Application Scenarios

• Road Freight: Standard 50mm x 9m/11m straps for general logistics.

• Mining & Construction: 75mm – 100mm heavy-duty straps for moving oversize equipment.

• Agriculture & Rural: Specialized tie-downs for hay bale and machinery transport.

How to Choose the Right Ratchet Tie Down for Your Business?

Selecting the correct load restraint system is critical for both road safety and legal compliance under the Australian Heavy Vehicle National Law (HVNL). Follow this professional guide to match our high-performance hardware with your specific transport requirements.

1. Determine Your Lashing Capacity (LC)

In Australia, all tie-downs are rated by Lashing Capacity (LC), which is typically 50% of the Breaking Load. Choosing the right width and strength ensures your cargo stays secure during sudden braking or sharp turns.

Application Type	Webbing Width	Breaking Load	Recommended Series
Light Duty (Utes/Vans)	25mm	800kg – 1500kg	LS02 / LS03 Series
Medium Logistics	35mm – 50mm	2000kg – 3000kg	LS01 / LS04 (Mid-Range)
Heavy Freight (Interstate)	50mm	5,000kg (Industry Std)	LS01-055 / LS04-055
Mining & Heavy Machinery	75mm – 100mm	8000kg – 10000kg	LS01-088 / LS01-101

2. Match the End Fitting to Your Truck Rail

The hardware must integrate perfectly with your vehicle’s anchor points to prevent slippage.

• Flat Hooks (FH Series): The Gold Standard for Australian Flatbeds. Specifically designed to slide over standard 50mm rub rails. We recommend the Safety Latch version for maximum security on uneven roads.

• Swan Hooks & J-Hooks (SWH/SJH Series): Best for vehicles with specialized circular tie-down bars or Grade 70 chain points. These provide a high-intensity grip for heavy machinery.

• S-Hooks (VSH Series): Ideal for light-duty 25mm straps used on small trailers or interior van rails.

3. Select the Right Ratchet Handle for Your Crew

Operating efficiency depends on the ergonomics and safety features of the ratchet mechanism.

• The Safety Choice (Double-Lock): Our RB003-04 (Double Lock) series is highly recommended for WA and QLD mining sites. The dual-locking pawls prevent the strap from vibrating loose during long-haul transits.

• The Coastal Specialist (Aluminum Handle): If your fleet operates in high-salinity coastal areas, choose our Aluminum handles. They offer superior corrosion resistance and are lighter for drivers to handle.

• The Extreme Climate Option (Plastic/Rubber Grip): For the intense heat of the Australian Outback, plastic-coated handles provide a safer, non-slip grip that remains cool to the touch.

4. Factor in the Australian Environment

• UV Protection: Australia has some of the highest UV levels globally. Ensure you select Juli’s UV-Stabilized Polyester webbing to prevent fiber embrittlement and strength loss.

• Long-Haul Reliability: For interstate hauls (e.g., Sydney to Perth), our LS01 series features Heat-Set Webbing. This “Pre-Stretched” technology ensures minimal elongation (<7% at LC), meaning fewer stops for re-tensioning.

Compliance Checklist (Before You Buy)

To pass a roadside inspection in Australia, ensure your straps have:

1. A Clear Blue Label: Permanently stitched and protected by a sleeve.

2. Standard Marking: Must clearly state AS/NZS 4380:2001.

3. Correct Terminology: Ratings must be displayed in LC (Lashing Capacity), not just breaking strength.

Contact Us for Expert, Customized Solutions.

Product Specifications

• Production capacity: Breaking load from 0.25t till 10t, width from 25mm till 100mm are available.We are able to supply different kinds of protecting measures according to different using requirement.
• Production process: Raw Materials—Weaving—Dyeing—Taping—Sewing —Repair and iron—Testing—Packing
