Description:
Product category: Producing various kinds of lifting beam, lifting row, block, grab bucket. etc.
Annual capacity: The annual output is over 20000t.

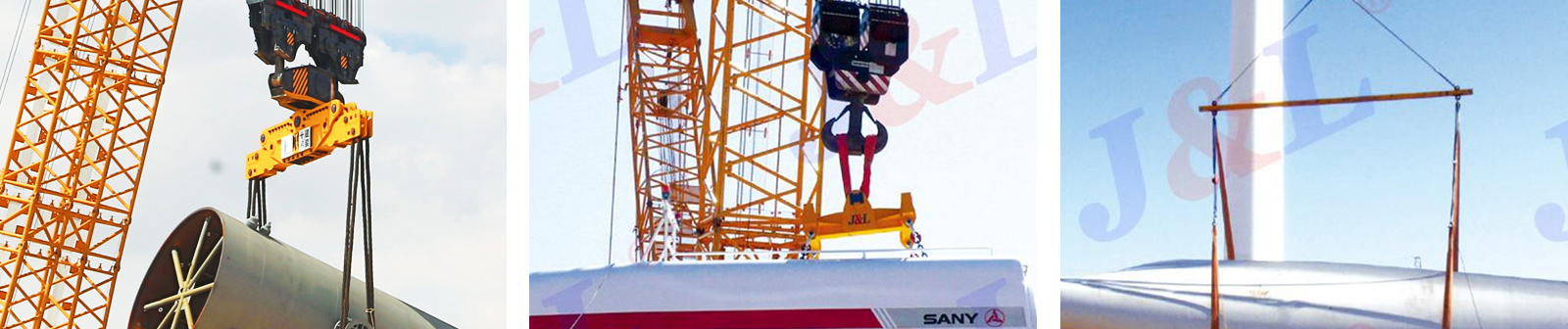

Usage: Widely used in metallurgy, shipbuilding, electric power, port, warehousing and other industries.
The biggest lifting appliance we have produced so far can bear 4000t. Also other kinds of lifting appliance can be produced according to the user requirement.
Main Features:
The biggest lifting appliance we have produced so far can bear 4000t. Also other kinds of liftingappliance can be produced according to the user requirement.
Product Usage:
Products and applications: Producing various kinds of lifting beam, lifting row, block, grabbucket, etc., which are widely used in metallurgy, shipbuilding, electric power, port, warehousing and other industries.The annual output is over 20000t.
Specifications
| CRH MULTIPLE UNITS RESCUING BEAMRH MULTIPLE UNITS RESCUING BEAM | |||||||||||||||
| WLL (t) | A (mm) | B (mm) | I (mm) | h (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | B1 (mm) | B2 (mm) | H (mm) | Φ1 (mm) | Φ2 (mm) | Self weight (kg) |
| 160 | 1250 | 285 | 480 | 387 | 5000 | 3480 | 3970 | 4460 | 400 | 400 | 700 | 180 | 120 | 1700 | |
| 1.For lifting CRH multiple units which is out of the railway. | |||||||||||||||
| 2.There are 3 installing holes and 1 lifting pin in both end of the beam, which could be adjusted to lift different type of carriages. | |||||||||||||||
| 3.Select appropriate lifting belt or hook to lift it per the weight of the carriages. | |||||||||||||||
| HLA type beam | |||||||||
|
| WLL (t) | Adjusting scope (m) | Effective Length L1 (m) | Dimensions (mm) | Self weight (kg) | ||||
| A | B | C | L | H | |||||
| 2 | 2~3 | 3 | 80 | 150 | 570 | 3184 | 180 | 145 | |
| 3.2 | 3~5 | 5 | 100 | 220 | 830 | 5200 | 300 | 400 | |
| 5 | 3~5 | 5 | 100 | 220 | 935 | 5300 | 300 | 520 | |
| 8 | 4~6 | 6 | 160 | 360 | 1140 | 6312 | 340 | 980 | |
| 10 | 4~6 | 6 | 160 | 360 | 1140 | 6312 | 340 | 1140 | |
| 12.5 | 4~6 | 6 | 180 | 400 | 1320 | 6320 | 370 | 1385 | |
| 16 | 6~8 | 8 | 180 | 430 | 1370 | 8320 | 450 | 2325 | |
| 20 | 6~8 | 8 | 180 | 430 | 1485 | 8360 | 450 | 2635 | |
| 25 | 6~8 | 8 | 200 | 500 | 1755 | 8500 | 530 | 3110 | |
| 32 | 8~10 | 10 | 220 | 600 | 2135 | 10640 | 650 | 5435 | |
| 40 | 8~10 | 10 | 220 | 600 | 2165 | 10640 | 650 | 5880 | |
| 1.Structure: I type and streamline form. | |||||||||
| 2.Accessories: pin, eye hook | |||||||||
| 3.Function and characteristic: adjust the position of thehook per the dimensions of the loads. | |||||||||
| HLB TYPE BEAM | ||||||||
|
| WLL (t) | Dimension L(m) | Effective length (m) | Dimension of the master link ( mm ) | A×B×C (mm) | Self weight (kg) | ||
| D | E | F | ||||||
| 2 | 1~3 | 3 | 80 | 20 | 150 | 3180×160×1800 | 150 | |
| 3.2 | 3~5 | 5 | 90 | 24 | 160 | 5200×210×2100 | 350 | |
| 5 | 3~5 | 5 | 100 | 28 | 190 | 5300×240×2400 | 430 | |
| 8 | 6~8 | 8 | 110 | 32 | 200 | 8350×250×3800 | 720 | |
| 10 | 6~8 | 8 | 120 | 34 | 230 | 8350×280×3850 | 810 | |
| 12.5 | 6~8 | 8 | 135 | 38 | 250 | 8350×280×3900 | 945 | |
| 16 | 6~8 | 8 | 140 | 42 | 270 | 8350×300×4050 | 1170 | |
| 20 | 6~8 | 8 | 160 | 46 | 310 | 8400×300×4150 | 1475 | |
| 25 | 6~8 | 8 | 180 | 52 | 330 | 8460×380×4300 | 1585 | |
| 32 | 6~10 | 10 | 180 | 56 | 330 | 10500×480×4550 | 2720 | |
| 40 | 6~10 | 10 | 220 | 69 | 396 | 10500×480×4650 | 2790 | |
| 1.Structure: I type and streamline form. | ||||||||
| 2.Accessories: pin, chain sling, eye hook . | ||||||||
| 3.Function and characteristic: adjust the position of the hook per the dimensions of the loads. | ||||||||
Export Cases
-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions: 2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 OTC America.
