Introduce: Slab Clamp

JULI METALLURGY CLAMP FACTORY specializing in designing, researching and developing. and manufacturing kinds of clamp which could be used in various environments, including mechanical clamps, motor-driven clamps, hydraulic clamps, etc. The product range is 1t - 1000t working load.

Advantage:

The material of the clamp can be reasonably selected according to the customers' requirements, meeting the customers' requirements for the self-weight of the clamp as much as possible.
Working principle of lever makes it with simple structure, fiexible movement, safe and reliable lifiting. Locked by self-weight,positioned by the shutter, opening and closing of the jaws can be automatically realized.
The lifting eye adopts neutral lugs, which is convenient to hook and prevent it from falling apart.
This clamp is suitable for single-hook crane, and deformation design is available.
Certificate：TUV, CNAS
An annual capacity of more than 6000t.

Inquire Now

Main Features:

JULI Slab Clamp Factory specializing in designing, researching and developing. and manufacturing kinds of clamp which could be used in various environments, including mechanical clamps, motor-driven clamps, hydraulic clamps, etc. The product range is 1t - 1000t working load.

There are 150 sets of large processing machineries including φ200 NC floor type borer, 4x8m CNC planer type milling machine, etc. And products could be designed per user requirement.

Product Usage:

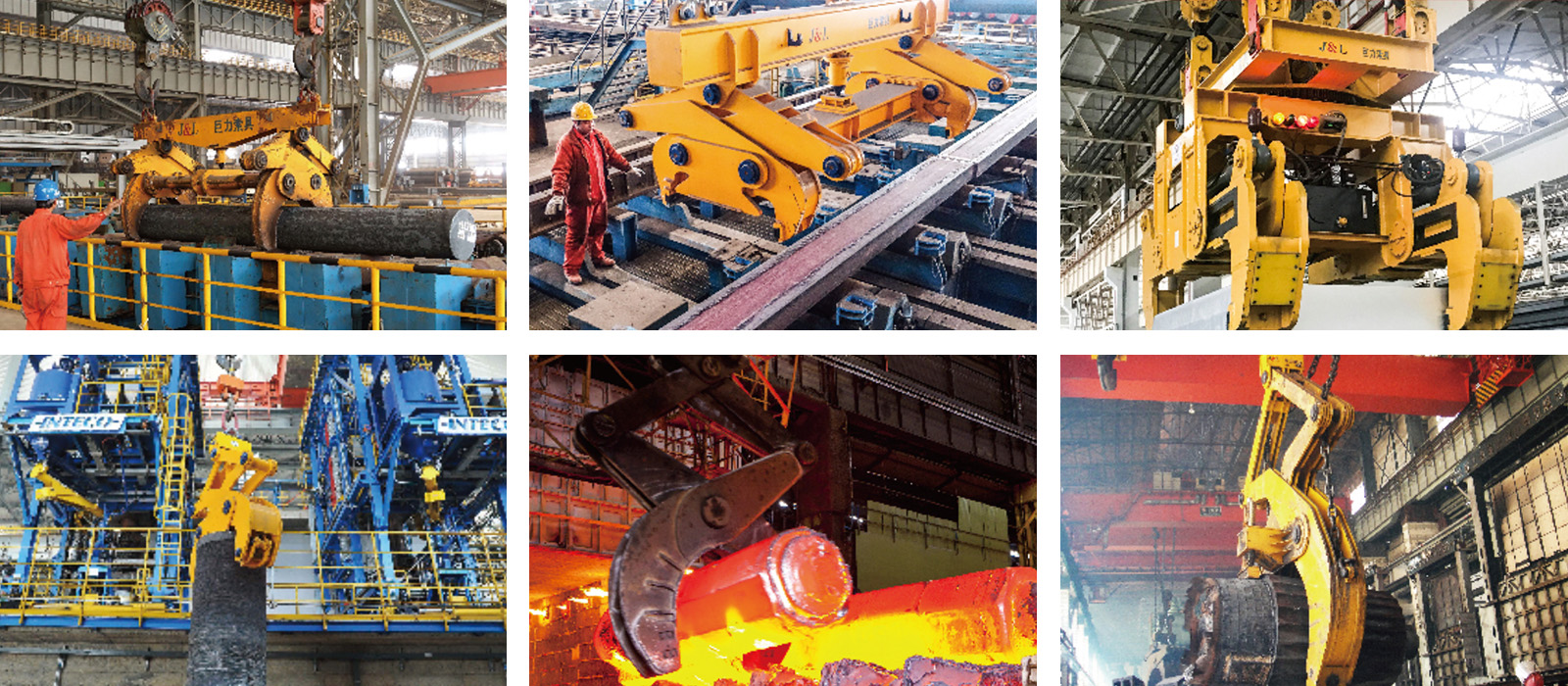

It is widely used in the continuous casting workshop of steel works in iron and steel metallurgy industry, slab storehouse of hot rolling mill, and the handling and loading of slabs at stations, freight yards and docks in the transportation industry.

Round Steel Clamp

Specifications

Slab Clamp
WLL（t）	Application scope (w)（mm）	Height of leg (H)（mm）	Span (L)（mm）	Max. dimension（mm）
WLL（t）	Application scope (w)（mm）	Height of leg (H)（mm）	Span (L)（mm）	W	H
5	450-600	150	800	1200	1800
5	650-1000	250	800	1500	2300
8	150-450	250	1200	2000	2400
8	450-600	300	1200	1600	2500
8	450-750	300	1200	1600	2200
10	450-900	300	1500	1900	2600
10	650-1000	300	1500	2000	2600
10	700-1100	300	1500	1900	2600
12	450-750	300	2000	1800	2400
12	235-800	300	2000	2300	3000
16	600-1000	450	2500	2400	3100
16	850-1250	300	2500	2000	3000
20	800-1300	300	3000	2200	3400
20	950-1400	300	3000	2500	3500
20	1100-1600	300	3000	2400	3700
25	1000-1600	600	3000	3000	3900
25	1250-1750	450	3000	2800	3900
32	700-1350	450	3000	2900	4000
32	750-1400	450	3000	2800	4200
32	650-1500	450	3000	3400	4600
32	900-2150	600	3000	4400	6000
32	1000-2300	600	3000	4700	6300
40	850-1600	450	4000	3500	4900
40	1250-1750	450	3500	3000	3000
40	1600-2150	450	3500	3300	4300
50	1250-2150	450	4000	4000	5600
50	1850-2500	450	4000	3800	5000
63	2050-2750	600	4000	4300	5800

Export Cases

-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions: 2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 OTC America.

Slab Clamp

FAQ

Q1：Are you factory or business company?

Juli Sling is an OEM&ODM manufacturer with nearly 38 years of history. Focusing on research and development and manufacturing of rigging.

Q2：What is your terms of delivery?

Accept EXW, FOB, CIF, etc. If you have any other choices or requirements, we could negotiate it together to help you find the most convenient and favorable one.

Q3：How does your factory do regarding quality control?

Quality is priority. We always attach great importance to quality controlling. Skillful workers care every details during the production; Strict quality testing in each process; Authoritative testing reports can be provided for customer.

Q4：What payment method is available?

By T/T, L/C, Other methods can be negotiated together.
