Custom Engineered Spreader Beams for Heavy Lift Applications

Why Use a Spreader Beam?

JULI Spreader Beam is engineered for safe, efficient, and controlled lifting of long, heavy, and irregular loads. Designed to reduce compressive stress on the load while maintaining optimal sling angles, our spreader beams provide superior load distribution, improved stability, and enhanced lifting safety in demanding environments. Inspired by advanced modular lifting principles used in heavy-duty global projects, JULI spreader beam systems are available in modular, fixed, and custom-engineered configurations to suit complex rigging requirements.

• Protect Load Integrity: Converts compressive stress into stable lifting forces, preventing deformation of high-value or fragile loads.

• Improve Lifting Control: Maintains ideal sling geometry to eliminate side-loading risks and minimize load swing.

• Optimize Crane Capacity: Our high-strength, lightweight designs reduce below-the-hook weight, maximizing your crane’s utilization.

• Versatile Configurations: Enables safe multi-point lifting for oversized, irregular, or extra-long structures.

Types of Spreader Beams

Type	Description	Typical Applications
Fixed Spreader Beam	Standard design for repetitive lifting operations with fixed lifting points.	Factories, shipyards, steel structures
Adjustable Spreader Beam	Flexible lifting point adjustment for different load sizes and project conditions.	Construction, equipment installation, rental fleets

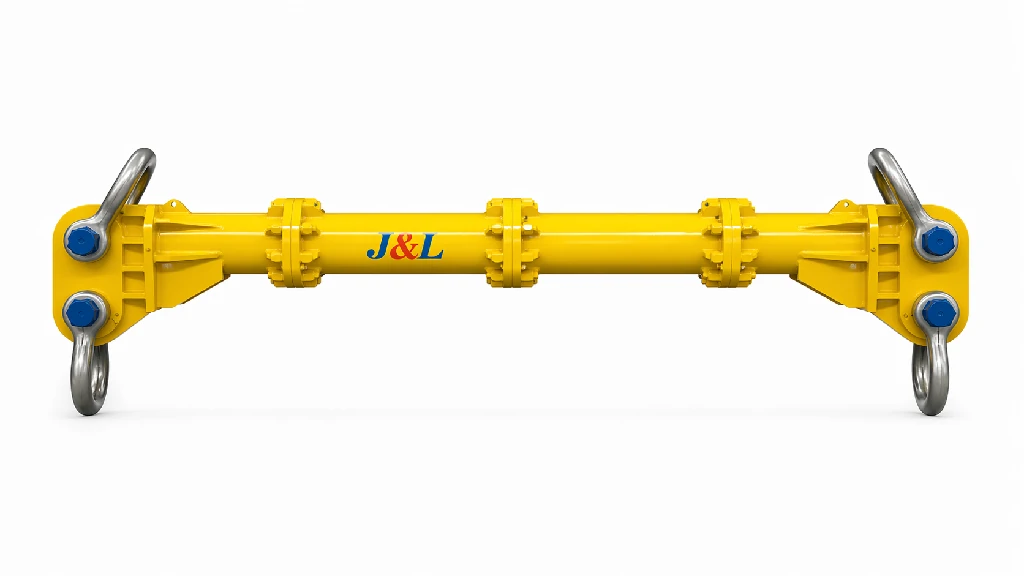

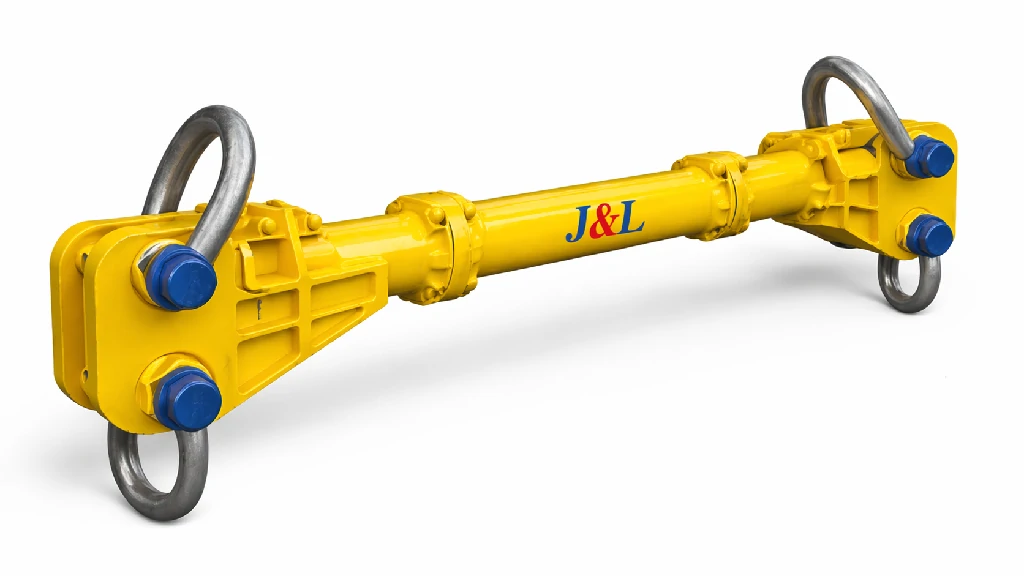

Modular Spreader Beam	Segmented design for easier transport and large-span heavy lifting.	Offshore projects, wind energy, heavy transport

Explore the full JULI lifting beam solutions here: spreader beam.

Industrial Applications: Engineered Solutions for Global Projects

1. Wind Energy (Onshore & Offshore)

In the rapidly evolving renewable sector, components are becoming longer, heavier, and more delicate. JULI provides precision-engineered spreader beams tailored for every stage of a wind farm’s lifecycle.

• Turbine Blades: Our ultra-long span (up to 50m+) modular beams ensure multi-point support for composite blades, preventing structural deformation or surface damage during tandem lifts.

• Nacelles & Drive Trains: High-capacity, compact spreader systems designed for precise orientation control during high-altitude installation.

• Foundation Structures: Heavy-lift solutions for Monopiles, Transition Pieces (TP), and Jackets, engineered to withstand the dynamic forces (DAF) of offshore sea states.

• Maintenance & Decommissioning: Specialized rigging for the safe removal and replacement of components in confined nacelle environments.

2. Offshore Oil & Gas & Marine Engineering

Operating in harsh maritime environments requires equipment that meets stringent DNV or ABS standards. JULI spreader beams are the backbone of offshore infrastructure.

• Topside & Subsea Modules: Safe deployment of manifold structures, pumps, and topside modules where the Center of Gravity (CoG) is often offset and requires adjustable rigging.

• Jacket & Piling Operations: Robust beams designed for heavy-duty vertical and horizontal lifts in corrosive salt-spray environments (C5-M coating standard).

• Subsea Deployment: Engineered for deep-water immersion, accounting for hydrodynamic drag and buoyancy factors to ensure stable subsea placement.

• Pipeline Installation: Integrated spreader systems for pipe-lay barges and subsea spool handling.

3. Infrastructure, Bridge & Civil Construction

Modern infrastructure projects demand rapid installation with zero tolerance for structural failure.

• Precast Concrete Beams: Distributed lifting points prevent tension cracking in precast bridge segments and architectural concrete modules.

• Structural Steel Erection: Ideal for lifting massive stadium roof trusses, airport terminal rafters, and high-rise core columns where lifting angle control is critical for fitment.

• Bridge Girders: Long-span beams for the placement of steel box girders and stay-cable anchorages, ensuring the stability of over-road and over-water installations.

4. Shipyard Fabrication & Port Operations

The high-frequency, high-load nature of shipyards requires equipment with high fatigue resistance and operational speed.

• Block Assembly: Precise handling of ship hull sections and engine room modules, allowing for perfect alignment during the welding process.

• Port Breakbulk & Project Cargo: Versatile, adjustable spreader systems for port authorities to handle oversized industrial boilers, transformers, and locomotives.

• Vessel Maintenance: Supporting dry-dock operations, including rudder and propeller replacements where low-headroom configurations are often required.

5. Heavy Machinery & Industrial Plant Relocation

Moving high-value industrial assets requires a “soft touch” combined with massive strength.

• Power Generation: Safe transport and positioning of gas turbines, generators, and large-scale transformers (100T – 500T+).

• Manufacturing Presses: Heavy-duty beams for installing automotive stamping presses and plastic injection molding machines in restricted indoor spaces.

• Laboratory & Sensitive Tech: Specialized beams for high-value, vibration-sensitive equipment where load leveling must be achieved with millimeter precision.

Why Partner with JULI for Your Heavy Lifting Needs?

JULI combines 38 years of manufacturing expertise with cutting-edge engineering to provide more than just a lifting tool—we deliver a comprehensive risk-management solution.

• Custom Engineered-to-Order (ETO) Every project begins with a rigorous requirement analysis. We provide CAD-designed blueprints and FEA (Finite Element Analysis) verification to ensure your spreader beam is perfectly matched to your load capacity, span length, and specific lifting points.

• Modular Versatility & ROI Optimization Our modular architecture features interchangeable struts and end units. This allows for rapid on-site assembly and span adjustment, enabling a single system to be reconfigured for multiple projects, significantly reducing your long-term equipment investment.

• Superior Load Integrity & Stability Engineered to maintain optimal sling geometry, our beams convert compressive stress into balanced load distribution. This minimizes side-loading risks and prevents deformation, ensuring the safe handling of fragile or high-value components.

• High-Strength, Lightweight Fabrication Manufactured from premium-grade alloy steel with certified precision welding, our beams offer an exceptional strength-to-weight ratio. This maximizes your crane’s utilization by reducing unnecessary below-the-hook weight without compromising structural durability.

• Extreme-Duty Reliability Built for the most demanding environments—from offshore marine to heavy infrastructure. All components are tested for heavy-lift safety in our CNAS-certified lab and manufactured in strict compliance with ASME, EN, and DNV standards.

• Comprehensive Project Documentation We support your compliance needs with a full technical data package, including load calculation reports, material mill certificates, and proof-load test results from our 5000T test bed.

Technical Specifications & Customization

Parameter	Standard & Custom Range
Working Load Limit (WLL)	10 Tons to 1,000 Tons+
Span Length	1 meter to 40+ meters (Customizable)
Configuration	Fixed, Adjustable, Modular, or Multi-tier (H-Frame)
Safety Factor	2:1, 4:1, 5:1, or project-specific requirements
Surface Coating	Marine-grade Epoxy, Hot-Dip Galvanizing, or Customized
Compliance	ASME B30.20, EN 13155, DNV-ST-N001 (on request)

Customization Options

JULI offers fully customized spreader beam solutions tailored to your project requirements, including:

• Custom lifting capacities and span lengths
• Fixed or modular spreader beam designs
• Multi-point rigging arrangements
• Adjustable end fittings, drop links, and connection options
• Specialized designs for low headroom or offshore lifting conditions
• Surface treatments and corrosion-resistant coatings for marine environments
• Proof load testing, certification, and project-specific engineering packages

From standard lifting beams to highly specialized heavy-lift systems, JULI can provide bespoke solutions engineered around your load geometry, crane capacity, and operating environment.

Engineering & Delivery Workflow

From conceptual analysis to certified delivery, JULI ensures a seamless, risk-free engineering lifecycle.

• Step 1 | Technical Requirement Analysis Comprehensive evaluation of load geometry, Center of Gravity (CoG), total weight, and environmental constraints (e.g., offshore sea states or extreme temperatures).

• Step 2 | Specialized Engineering & CAD Design Development of precision CAD blueprints and 3D structural modeling to optimize rigging geometry and ensure crane hook compatibility.

• Step 3 | FEA Verification & Structural Simulation Advanced Finite Element Analysis (FEA) to simulate stress distribution and buckling resistance, ensuring all safety factors (2:1 to 5:1) meet international standards.

• Step 4 | Certified Fabrication & Welding Manufacturing using high-tensile alloy steel with welding performed by certified technicians. Every joint undergoes NDT (Non-Destructive Testing) including Ultrasonic and Magnetic Particle Inspection.

• Step 5 | Full-Scale Proof Load Testing Performance verification in our 5000T horizontal test bed. Every beam is tested up to 2.0x WLL to guarantee structural integrity under peak loads.

• Step 6 | Project Documentation & Traceability Final delivery includes a comprehensive Technical Data Package (TDP): GA drawings, FEA reports, Material Mill Certificates, and Load Test Certificates.

FAQ: Expert Rigging Insights

When should I choose a Spreader Beam over a Lifting Beam?

Spreader beams are ideal for long spans where weight and cost are concerns, as they primarily work in compression. Lifting beams are better for low-headroom applications where the beam must handle bending moments.

Can you provide 3rd party certification?

Yes. We can coordinate with DNV, ABS, or Lloyd’s Register for project-specific inspections and certifications.

What information is needed for an engineering quote?

Please provide the total load weight, required span (distance between lifting points), headroom limitations, and your target safety factor.
