The product has hook. The product consists of ratchet, hook and belt. The color, width, ratchet and hook can be customized. All end fitting are changeable according to different requirement. We can customize the suitable solution according to your needs and uses. See the parameters below for details.
JuLi Ratchet Strap With Hook Description:
Product Name: Ratchet Strap With Hook
Breaking Load: 0.25T-10T /Customized
The width of belt: 25mm-100mm / Customized
Color: Customized
The material of belt: Polyester, Polypropylene, and Nylon.
The material of ratchet: Plastic handle, Aluminum handle, Steel handle, and Galvanized. Single lock/double lock. / Customized
Hook: Customized
The material of hook: Galvanized.
Brand Name: J&L
Place of Origin: Hebei, China
Customized Service: Support customized service. Able to supply different kinds of protecting measures according to different using requirement.
Standards: Perform with standard EN 12195-2, AS/NZS438, American Standard.
Safety Factor: 2:1 3:1
Certifications: CE, GS
Characteristics: High tension, low elongation, small volume, light weight, easy to operate, safe and convenient to bring.
Usage: Widely used in lashing, tying and even self rescue of trailer during transportation.
JuLi Ratchet Strap With Hook Features:
Ratchet straps are typically made of strong and durable materials like polypropylene or polyester. These materials provide sufficient tensile strength to lash heavy loads.
Ratchet straps are adjustable, allowing users to tighten or loosen the strap length according to their needs. This feature makes them versatile for different load sizes and shapes.
Ratchet straps come with hooks or hardware attachments at both ends. These hooks are designed to connect to anchor points, trailer rings, or any suitable attachment point on trucks, trailers, or racks.
JuLi Ratchet Strap With Hook Applications:
Ratchet tie down is widely usde in lashing, tying and even self rescue of trailer during transportation
JuLi Ratchet Strap With Hook Specifications
| LS01 Type | Art. No | Breaking Load (kg) | Width (mm) | Total Length (m) | ||
  | LS01-008 | 800 | 25 | 6~12 | ||
| LS01-015 | 1500 | 25 | 6~12 | |||
| LS01-02 | 2000 | 35/50 | 6~12 | |||
| LS01-03 | 3000 | 35/50 | 6~12 | |||
| LS01-04 | 4000 | 50 | 6~12 | |||
| LS01-05 | 5000 | 50 | 6~12 | |||
| LS01-08 | 8000 | 75 | 6~12 | |||
| LS01-10 | 10000 | 100 | 6~12 | |||
| Note:End fittings are changeable according to different requirement. | ||||||
| LS02 Type | Art. No | Breaking Load (kg) | Width (mm) | Total Length (m) | ||
| LS02-007 | 700 | 25 | 6~12 | ||
| LS02-015 | 1500 | 25 | 6~12 | |||
| Note: End fittings are changeable according to different requirement. | ||||||
| LS03 Type | Art. No | Breaking Load (kg) | Width (mm) | Total Length (m) | ||
 | LS03-0025 | 250 | 25 | 6~12 | ||
| LS03-003 | 300 | 25 | 6~12 | |||
| Note: End fittings are changeable according to different requirement. | ||||||
| LS05 Type | Art. No | Breaking Load (kg) | Width (mm) | Total Length (m) | ||
 | LS05-045 | 10000 | 2'' | 6~12 | ||
| LS05-075 | 16500 | 4'' | 6~12 | |||
| Note:End fittings are changeable according to different requirement. | ||||||
| End Fitting | |||||||||
| Swan Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| SWH001 | 2 '' | 5000 | 53 | 85 | 40 | 9 | Galv. | LS01 | |
| SWH002 | 1 1/2'' | 3000 | 38 | 80 | 40 | 9 | Galv. | LS01 | |
| SWH003 | 1'' | 1500 | 28 | 60 | 20 | 5.5 | Galv. | LS01 | |
| Flat Hook | ||||||||||||
 | Art. No. | Size | Breaking Load (ibs) | Dimension (mm) | Surface | Suitability | Note | |||||
| A | B | C | d | E | L | |||||||
| FH001-01 | 4'' | 17000 | 70 | 95 | 6 | 17 | 45 | 93 | Galv. | LS05,LS06 | Steel or Aluminium safety latch is available | |
| FH002-01 | 2'' | 10000 | 48 | 66 | 4.5 | 17 | 45 | 92 | Galv. | LS05 | ||
| S Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| D1 | D2 | D3 | H | ||||||
| VSH001 | 1'' | 1500 | 25 | 25 | 12 | 120 | Dipping Plastic | LS02 | |
| VSH002 | 1'' | 1000 | 22 | 23 | 12 | 95 | LS02,LS03 | ||
| VSH003 | 1'' | 1000 | 22 | 25 | 10 | 120 | LS02 | ||
| VSH004 | 1'' | 800 | 25 | 25 | 9 | 102 | LS02 | ||
| Triangle Ring | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| A | B | d | D | ||||||
| VR001 | 4'' | 20000lbs | 102 | 88 | 20 | 18 | Galv. | LS01 | |
| VR002 | 3'' | 18000lbs | 77 | 62 | 16 | 11.7 | Galv. | LS01 | |
| VR003 | 2'' | 5000 | 52 | 62 | 15 | 11.5 | Galv. | LS01 | |
| VR004 | 1 1/2'' | 3000 | 38 | 50 | 16 | 9.5 | Galv. | LS01 | |
| Single J Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | d | D | ||||||
| SJH001-01 | 2'' | 5000 | 53 | 120 | 50 | 20 | 16 | Galv. | LS01 | |
| SJH001-02 | 2'' | 3000 | 52 | 123 | 50 | 20 | 12 | Galv. | LS01 | |
| SJH002 | 1 1/2'' | 3000 | 40 | 100 | 50 | 16 | 12 | Galv. | LS01 | |
| Flat Safety Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | D | E | ||||||
| SNH002-01 | 2'' | 2700 | 50 | 3 | 80 | 24 | 110 | Galv. | LS01 | |
| SNH002-02 | 2'' | 4500 | 51 | 5 | 120 | 25 | 153 | Galv. | LS01 | |
| TSNH001 | 2'' | 4500 | 51 | 6 | 118 | 25 | 118 | Galv. | LS01 | |
| Closed Double J Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | d | D | ||||||
| WH001 | 4'' | 10000 | 103 | 140 | 52 | 22 | 17 | Galv. | LS01 | |
| WH002 | 3'' | 10000 | 77 | 136 | 45 | 20 | 16 | Galv. | LS01 | |
| WH003-01 | 2'' | 5000 | 52 | 85 | 38 | 20 | 11.7 | Galv. | LS01 | |
| WH003-02 | 2'' | 5000 | 52 | 108 | 36 | 20 | 11.7 | Galv. | LS01 | |
| WH003-04 | 2'' | 4000 | 52 | 85 | 35 | 19 | 11 | Galv. | LS01 | |
| WH003-05 | 2'' | 3000 | 52 | 85 | 35 | 20 | 9.5 | Galv. | LS01 | |
| WH003-06 | 2'' | 680 | 52 | 72 | 30 | 25 | 6.5 | Galv. | LS01 | |
| WH004-01 | 1 1/2'' | 3000 | 38 | 65 | 30.5 | 17 | 9.5 | Galv. | LS01 | |
| WH004-02 | 1 1/2'' | 3000 | 38 | 86 | 35 | 18 | 9.5 | Galv. | LS01 | |
| WH004-03 | 1 1/2'' | 2000 | 38 | 65 | 30 | 18 | 8.5 | Galv. | LS01 | |
| WH005-01 | 1 1/16'' | 1500 | 28 | 58 | 28 | 17 | 7 | Galv. | LS01 | |
| WH006 | 1'' | 800 | 27 | 47 | 21 | 11 | 6.5 | Galv. | LS01 | |
| Open Double J Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| A | B | d | D | ||||||
| UH001 | 3'' | 10000 | 77 | 88 | 20 | 18 | Galv. | LS01 | |
| UH002-01 | 2'' | 5000 | 52 | 62 | 16 | 11.7 | Galv. | LS01 | |
| UH002-02 | 2'' | 4000 | 52 | 62 | 15 | 11.5 | Galv. | LS01 | |
| UH003 | 1 1/2'' | 3000 | 39 | 50 | 16 | 9.5 | Galv. | LS01 | |
| Eye Hook | |||||||||||||
 | Art. No. | Self Weight (kg) | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||||||
| A | B | C | d1 | d2 | d3 | E | F | ||||||
| EH001 | 320 | 5000 | 55 | 22 | 18 | 17 | 8 | 19 | 55 | 15 | Galv. | Traction belt for car | |
| EH002 | 240 | 3000 | 55 | 22 | 18 | 17 | 8 | 19 | 55 | 15 | Galv. | ||
| End Fitting | ||

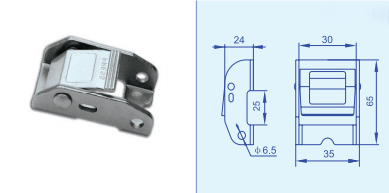

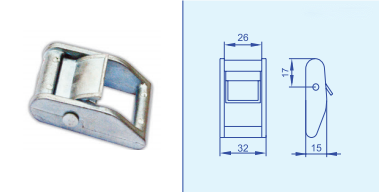

| Cam Buckle (Unit: mm) | ||
 |  |  |
| Type: CB001 Size: 2" Breaking Load: 1500 kg Suitable for LS03 ratchet tie down Galvanized | Type: CB002-01 Size: 1" Breaking Load: 1200 kg Suitable for LS03 ratchet tie down Galvanized | Type: CB002-02 Size: 1" Breaking Load: 700 kg Suitable for LS03 ratchet tie down Galvanized |
 |  |  |
| Type: CB002-03 Size: 1" Breaking Load: 500 kg Suitable for LS03 ratchet tie down Galvanized | Type: CB002-04 Size: 1" Breaking Load: 400 kg Suitable for LS03 ratchet tie down | Type: CB002-05 Size: 1" Breaking Load: 500 kg Suitable for LS03 ratchet tie down Galvanized |
| End Fitting | |
| D Ring | Special End Fitting |
 |  |
| Type: DR002 Size: 1 1/16" Breaking Load: 1300 kg Suitable for LS01 ratchet tie down | Type: SP003 Size: 2" Breaking Load: 1200 kg Suitable for LS01 ratchet tie down |
Customized Packaging
JULI standard export package: Heat shrinking film packaging + Carton + Pallet
Customized packaging according to customer needs
JuLi Ratchet Strap With Hook Certifications: ISO CE GS
Manufacturing Process
Production capacity: Breaking load from 0.25t till 10t, width from 25mm till 100mm are available.We are able to supply different kinds of protecting measures according to different using requirement.
Production process：Raw Materials—Weaving—Dyeing—Taping—Sewing —Repair and iron—Testing—Packing
Export Cases
-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions:2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 America.
When it comes to securing your cargo during transportation, ratchet straps are a game-changer. Specifically, ratchet tie-downs offer unmatched strength, adjustability, and reliability, making them an indispensable tool for cargo securing needs. At Juli slings, we take pride in manufacturing and supplying high-quality ratchet tie-downs that meet the demands of various industries. Choose our exceptional products and experience the peace of mind that comes with secure and efficient cargo transport. Contact us today to explore our range of ratchet tie-downs and unlock the power of unrivaled quality and performance.
FAQ
Q1：Are you factory or business company?
Juli Sling is an OEM&ODM manufacturer with nearly 38 years of history. Focusing on research and development and manufacturing of rigging.
Q2：What is your terms of delivery?
Accept EXW, FOB, CIF, etc. If you have any other choices or requirements, we could negotiate it together to help you find the most convenient and favorable one.
Q3：How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality controlling. Skillful workers care every details during the production; Strict quality testing in each process; Authoritative testing reports can be provided for customer.
Q4：What payment method is available?
By T/T, L/C, Other methods can be negotiated together.
Catalogue
Download Document
Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours.
