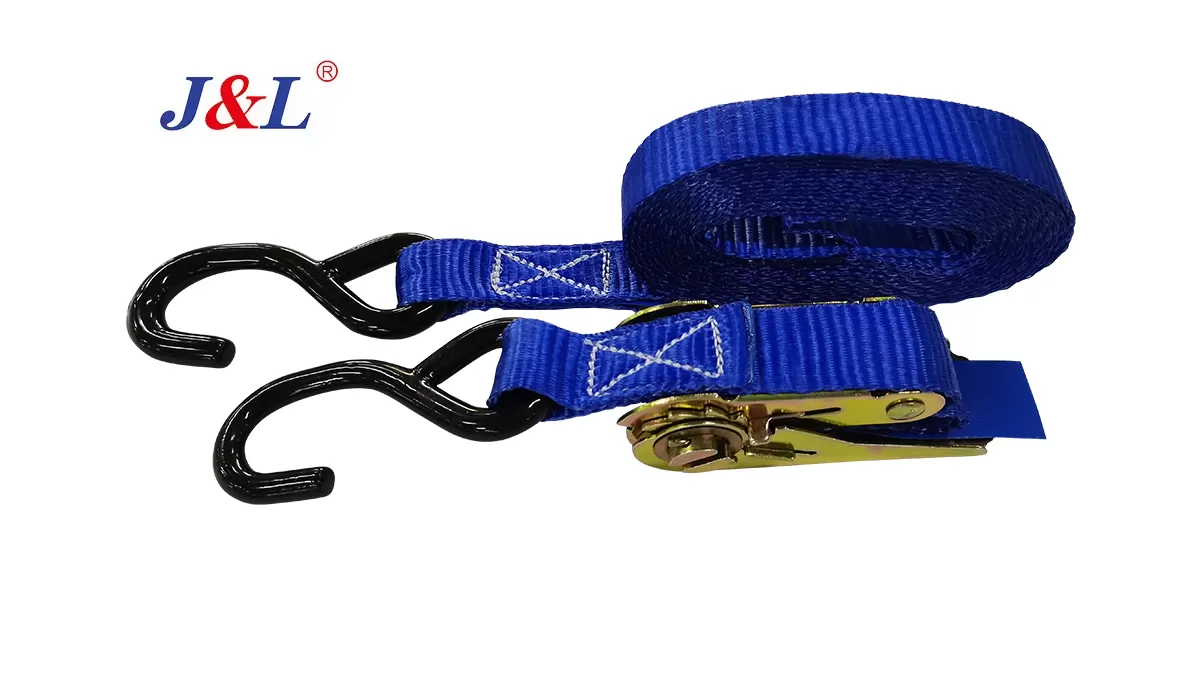

The ratchet straps have S hook. The end fitting can be selected. The color, length, beltwidth and break load of the ratchet strap can be customized. We can customize the suitable solution according to your needs and uses. See the following specification table for detailed parameters.
Description:
Model Number: LS02
Breaking Load: 0.7T-1.5T
The width of belt: 25mm
The material of ratchet: Steel handle, Galvanized. Single lock.
Hook: S hook. Dipping plastic.
Brand Name: J&L
Place of Origin: Hebei, China
Customized Service: Support customized service. Able to supply different kinds of protecting measures according to different using requirement.
Standards: Perform with standard EN 12195-2, AS/NZS438, American standard.
Safety Factor: 2:1 3:1
Certifications: CE, GS
Characteristics: high tension, low elongation, small volume, light weight, easy to operate, safe and convenient to bring.
Usage: Widely used in lashing, tying and even self rescue of trailer during transportation.
Main Features:
Whether you're moving furniture, appliances, or bulky items, ratchet straps can help keep your load in place and prevent shifting or shifting during transit.
Ratchet straps are commonly used to secure motorcycles, ATVs, or other vehicles onto trailers or truck beds. They provide stability and prevent the vehicle from sliding or tipping.
If you're going camping or engaging in outdoor adventures, ratchet straps come in handy for securing gear and equipment to roof racks, trailers, or backpacks.
Applications:
Ratchet tie down is widely usde in lashing,tying and even self rescue of trailer during vehicle transport, moving and relocation, and cargo and freight.
Specifications
 LS02 Type | Art. No | Breaking Load (kg) | Width (mm) | Total Length (m) | ||
| LS02-007 | 700 | 25 | 6~12 | ||
| LS02-015 | 1500 | 25 | 6~12 | |||
| Note: End fittings are changeable according to different requirement. | ||||||
| End Fitting | ||
| Ratchet (Unit: mm) | ||
 |  |  |
| Type: RB001 Size: 4" Breaking Load: 10000 kg Suitable for LS01, LS04 and LS05 ratechet tie down Single Lock Plastic handle/Aluminum handle Galvanized | Type: RB002 Size: 3" Breaking Load: 10000 kg Suitable for LS01, LS04 andLS05 ratechet tie down Single Lock Aluminum handle Galvanized | Type: RB003 Size: 2" Breaking Load: 50000 kg Suitable for LS01 and LS04 ratechet tie down Single Lock Aluminum handle Galvanized |
 |  |  |
| Type: RB003-04 Size: 2" Breaking Load: 5000 kg Suitable for LS01, LS04 and LS05 ratechet tie down Double Lock Aluminum handle | Type: RB003-06 Size: 2" Breaking Load: 5000 kg Suitable for LS01 and LS04 ratechet tie down Single Lock/Double Lock Plastic handle/Aluminum handle Galvanized | Type: RB003-07 Size: 2" Breaking Load: 2000 kg Suitable for LS01 and LS04 ratechet tie down Single Lock Steel handle/Aluminum handle Galvanized |
 |  |  |
| Type: RB004-01 Size: 1 1/2" Breaking Load: 3000 kg Suitable for LS01 and LS04 ratechet tie down Single Lock/Double Lock Plastic handle/Steel handle | Type: RB004-03 Size: 1 1/2" Breaking Load: 2000 kg Suitable for LS01 and LS04 ratechet tie down Single Lock Steel handle Galvanized | Type: RB005-01 Size: 1 1/16" Breaking Load: 1500 kg Suitable for LS01, LS02 and LS04 ratechet tie down Single Lock Steel handle Galvanized |
 |  | -- |
| Type: RB006-01 Size: 1" Breaking Load: 800 kg Suitable for LS01, LS02 and LS04 ratechet tie down Single Lock Steel handle Galvanized | Type: RB006-02 Size: 1" Breaking Load: 800 kg Suitable for LS01, LS02 and LS04 ratechet tie down Single Lock Galvanized | -- |
| End Fitting | |||||||||
| Swan Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| SWH001 | 2 '' | 5000 | 53 | 85 | 40 | 9 | Galv. | LS01 | |
| SWH002 | 1 1/2'' | 3000 | 38 | 80 | 40 | 9 | Galv. | LS01 | |
| SWH003 | 1'' | 1500 | 28 | 60 | 20 | 5.5 | Galv. | LS01 | |
| Flat Hook | ||||||||||||
 | Art. No. | Size | Breaking Load (ibs) | Dimension (mm) | Surface | Suitability | Note | |||||
| A | B | C | d | E | L | |||||||
| FH001-01 | 4'' | 17000 | 70 | 95 | 6 | 17 | 45 | 93 | Galv. | LS05,LS06 | Steel or Aluminium safety latch is available | |
| FH002-01 | 2'' | 10000 | 48 | 66 | 4.5 | 17 | 45 | 92 | Galv. | LS05 | ||
| S Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| D1 | D2 | D3 | H | ||||||
| VSH001 | 1'' | 1500 | 25 | 25 | 12 | 120 | Dipping Plastic | LS02 | |
| VSH002 | 1'' | 1000 | 22 | 23 | 12 | 95 | LS02,LS03 | ||
| VSH003 | 1'' | 1000 | 22 | 25 | 10 | 120 | LS02 | ||
| VSH004 | 1'' | 800 | 25 | 25 | 9 | 102 | LS02 | ||
| Triangle Ring | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| A | B | d | D | ||||||
| VR001 | 4'' | 20000lbs | 102 | 88 | 20 | 18 | Galv. | LS01 | |
| VR002 | 3'' | 18000lbs | 77 | 62 | 16 | 11.7 | Galv. | LS01 | |
| VR003 | 2'' | 5000 | 52 | 62 | 15 | 11.5 | Galv. | LS01 | |
| VR004 | 1 1/2'' | 3000 | 38 | 50 | 16 | 9.5 | Galv. | LS01 | |
| Single J Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | d | D | ||||||
| SJH001-01 | 2'' | 5000 | 53 | 120 | 50 | 20 | 16 | Galv. | LS01 | |
| SJH001-02 | 2'' | 3000 | 52 | 123 | 50 | 20 | 12 | Galv. | LS01 | |
| SJH002 | 1 1/2'' | 3000 | 40 | 100 | 50 | 16 | 12 | Galv. | LS01 | |
| Flat Safety Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | D | E | ||||||
| SNH002-01 | 2'' | 2700 | 50 | 3 | 80 | 24 | 110 | Galv. | LS01 | |
| SNH002-02 | 2'' | 4500 | 51 | 5 | 120 | 25 | 153 | Galv. | LS01 | |
| TSNH001 | 2'' | 4500 | 51 | 6 | 118 | 25 | 118 | Galv. | LS01 | |
| Closed Double J Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | d | D | ||||||
| WH001 | 4'' | 10000 | 103 | 140 | 52 | 22 | 17 | Galv. | LS01 | |
| WH002 | 3'' | 10000 | 77 | 136 | 45 | 20 | 16 | Galv. | LS01 | |
| WH003-01 | 2'' | 5000 | 52 | 85 | 38 | 20 | 11.7 | Galv. | LS01 | |
| WH003-02 | 2'' | 5000 | 52 | 108 | 36 | 20 | 11.7 | Galv. | LS01 | |
| WH003-04 | 2'' | 4000 | 52 | 85 | 35 | 19 | 11 | Galv. | LS01 | |
| WH003-05 | 2'' | 3000 | 52 | 85 | 35 | 20 | 9.5 | Galv. | LS01 | |
| WH003-06 | 2'' | 680 | 52 | 72 | 30 | 25 | 6.5 | Galv. | LS01 | |
| WH004-01 | 1 1/2'' | 3000 | 38 | 65 | 30.5 | 17 | 9.5 | Galv. | LS01 | |
| WH004-02 | 1 1/2'' | 3000 | 38 | 86 | 35 | 18 | 9.5 | Galv. | LS01 | |
| WH004-03 | 1 1/2'' | 2000 | 38 | 65 | 30 | 18 | 8.5 | Galv. | LS01 | |
| WH005-01 | 1 1/16'' | 1500 | 28 | 58 | 28 | 17 | 7 | Galv. | LS01 | |
| WH006 | 1'' | 800 | 27 | 47 | 21 | 11 | 6.5 | Galv. | LS01 | |
| Open Double J Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| A | B | d | D | ||||||
| UH001 | 3'' | 10000 | 77 | 88 | 20 | 18 | Galv. | LS01 | |
| UH002-01 | 2'' | 5000 | 52 | 62 | 16 | 11.7 | Galv. | LS01 | |
| UH002-02 | 2'' | 4000 | 52 | 62 | 15 | 11.5 | Galv. | LS01 | |
| UH003 | 1 1/2'' | 3000 | 39 | 50 | 16 | 9.5 | Galv. | LS01 | |
| Eye Hook | |||||||||||||
 | Art. No. | Self Weight (kg) | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||||||
| A | B | C | d1 | d2 | d3 | E | F | ||||||
| EH001 | 320 | 5000 | 55 | 22 | 18 | 17 | 8 | 19 | 55 | 15 | Galv. | Traction belt for car | |
| EH002 | 240 | 3000 | 55 | 22 | 18 | 17 | 8 | 19 | 55 | 15 | Galv. | ||
Customized Packaging
JULI standard export package: Heat shrinking film packaging + Carton + Pallet
Customized packaging according to customer needs
Certifications: ISO CE GS
Manufacturing Process
Production capacity: Breaking load from 0.25t till 10t, width from 25mm till 100mm are available. We are able to supply different kinds of protecting measures according to different using requirement.
Production process：Raw Materials—Weaving—Dyeing—Taping—Sewing —Repair and iron—Testing—Packing
Export Cases
-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions:2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 America.
When it comes to securing your cargo during transportation, ratchet straps are a game-changer. Specifically, ratchet tie-downs offer unmatched strength, adjustability, and reliability, making them an indispensable tool for cargo securing needs. At Juli slings, we take pride in manufacturing and supplying high-quality ratchet tie-downs that meet the demands of various industries. Choose our exceptional products and experience the peace of mind that comes with secure and efficient cargo transport. Contact us today to explore our range of ratchet tie-downs and unlock the power of unrivaled quality and performance.
FAQ
Q1：Are you factory or business company?
Juli Sling is an OEM&ODM manufacturer with nearly 38 years of history. Focusing on research and development and manufacturing of rigging.
Q2：What is your terms of delivery?
Accept EXW, FOB, CIF, etc. If you have any other choices or requirements, we could negotiate it together to help you find the most convenient and favorable one.
Q3：How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality controlling. Skillful workers care every details during the production; Strict quality testing in each process; Authoritative testing reports can be provided for customer.
Q4：What payment method is available?
By T/T, L/C, Other methods can be negotiated together.
