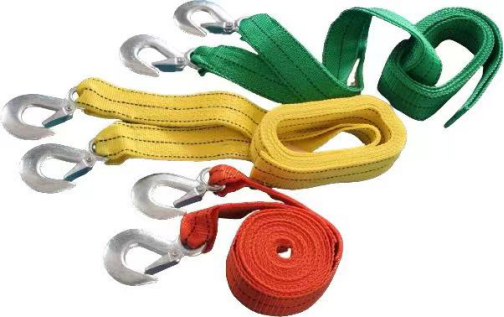

The product name is towing belt for belts, it consists of belt and hook. You can customize the beltwidth, color, hook, etc. We can customize the suitable solution according to your needs and uses. See the parameters below for details.
Description:
Product name: Tow belt for car
Breaking Load: 1T-3T
Appox. Width: 50mm
Color: Customized
The material of belt: Polyester, Polypropylene, and Nylon.
Hook: Eye hook, Single J hook, Closed double J hook/ Customized
The material of hook: Galvanized.
Brand Name: J&L
Place of Origin: Hebei, China
Customized Service: Support customized service. Able to supply different kinds of protecting measures according to different using requirement.
Standards: Perform with standard EN 12195-2, standard EN1492-1.
Certifications: ISO, CE, GS
Characteristics: High tension, low elongation, small volume, light weight, easy to operate, safe and convenient to bring.
Usage: Widely used in towing.
Main Features:
The main product of tow belts for cars is a reliable and durable towing strap. These straps are designed to securely connect two vehicles for towing purposes. Tow belts typically feature strong materials like nylon or polyester, along with reinforced stitching to ensure strength and durability.
They often come with looped ends or hooks that can be easily attached to the towing vehicle and the vehicle being towed. Tow belts are an essential tool for safely moving disabled or stranded vehicles, providing assistance during breakdowns or accidents.
Product Applications:
Tow belt for car is for towing car. Ratchet tie down is widely usde in lashing, tying and even self rescue of trailer during transportation.
Specifications
| Towing Belt For Cars | Art. No | Breaking Load (kg) | Approx. Thickness (mm) | Approx. Width (mm) | Total Length (m) | Self Weight (kg) | ||
  | TB01-1 | 1000 | 1.5 | 50 | 4 | 0.18 | ||
| TB01-1.5 | 1500 | 1.5 | 50 | 4 | 0.25 | |||
| TB01-2 | 2000 | 3 | 50 | 4 | 0.3 | |||
| TB01-3 | 3000 | 3 | 50 | 4 | 0.37 | |||
| End Fitting | |||||||||
| Swan Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| SWH001 | 2 '' | 5000 | 53 | 85 | 40 | 9 | Galv. | LS01 | |
| SWH002 | 1 1/2'' | 3000 | 38 | 80 | 40 | 9 | Galv. | LS01 | |
| SWH003 | 1'' | 1500 | 28 | 60 | 20 | 5.5 | Galv. | LS01 | |
| Flat Hook | ||||||||||||
 | Art. No. | Size | Breaking Load (ibs) | Dimension (mm) | Surface | Suitability | Note | |||||
| A | B | C | d | E | L | |||||||
| FH001-01 | 4'' | 17000 | 70 | 95 | 6 | 17 | 45 | 93 | Galv. | LS05,LS06 | Steel or Aluminium safety latch is available | |
| FH002-01 | 2'' | 10000 | 48 | 66 | 4.5 | 17 | 45 | 92 | Galv. | LS05 | ||
| S Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| D1 | D2 | D3 | H | ||||||
| VSH001 | 1'' | 1500 | 25 | 25 | 12 | 120 | Dipping Plastic | LS02 | |
| VSH002 | 1'' | 1000 | 22 | 23 | 12 | 95 | LS02,LS03 | ||
| VSH003 | 1'' | 1000 | 22 | 25 | 10 | 120 | LS02 | ||
| VSH004 | 1'' | 800 | 25 | 25 | 9 | 102 | LS02 | ||
| Triangle Ring | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| A | B | d | D | ||||||
| VR001 | 4'' | 20000lbs | 102 | 88 | 20 | 18 | Galv. | LS01 | |
| VR002 | 3'' | 18000lbs | 77 | 62 | 16 | 11.7 | Galv. | LS01 | |
| VR003 | 2'' | 5000 | 52 | 62 | 15 | 11.5 | Galv. | LS01 | |
| VR004 | 1 1/2'' | 3000 | 38 | 50 | 16 | 9.5 | Galv. | LS01 | |
| Single J Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | d | D | ||||||
| SJH001-01 | 2'' | 5000 | 53 | 120 | 50 | 20 | 16 | Galv. | LS01 | |
| SJH001-02 | 2'' | 3000 | 52 | 123 | 50 | 20 | 12 | Galv. | LS01 | |
| SJH002 | 1 1/2'' | 3000 | 40 | 100 | 50 | 16 | 12 | Galv. | LS01 | |
| Flat Safety Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | D | E | ||||||
| SNH002-01 | 2'' | 2700 | 50 | 3 | 80 | 24 | 110 | Galv. | LS01 | |
| SNH002-02 | 2'' | 4500 | 51 | 5 | 120 | 25 | 153 | Galv. | LS01 | |
| TSNH001 | 2'' | 4500 | 51 | 6 | 118 | 25 | 118 | Galv. | LS01 | |
| Closed Double J Hook | ||||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | ||||
| A | B | C | d | D | ||||||
| WH001 | 4'' | 10000 | 103 | 140 | 52 | 22 | 17 | Galv. | LS01 | |
| WH002 | 3'' | 10000 | 77 | 136 | 45 | 20 | 16 | Galv. | LS01 | |
| WH003-01 | 2'' | 5000 | 52 | 85 | 38 | 20 | 11.7 | Galv. | LS01 | |
| WH003-02 | 2'' | 5000 | 52 | 108 | 36 | 20 | 11.7 | Galv. | LS01 | |
| WH003-04 | 2'' | 4000 | 52 | 85 | 35 | 19 | 11 | Galv. | LS01 | |
| WH003-05 | 2'' | 3000 | 52 | 85 | 35 | 20 | 9.5 | Galv. | LS01 | |
| WH003-06 | 2'' | 680 | 52 | 72 | 30 | 25 | 6.5 | Galv. | LS01 | |
| WH004-01 | 1 1/2'' | 3000 | 38 | 65 | 30.5 | 17 | 9.5 | Galv. | LS01 | |
| WH004-02 | 1 1/2'' | 3000 | 38 | 86 | 35 | 18 | 9.5 | Galv. | LS01 | |
| WH004-03 | 1 1/2'' | 2000 | 38 | 65 | 30 | 18 | 8.5 | Galv. | LS01 | |
| WH005-01 | 1 1/16'' | 1500 | 28 | 58 | 28 | 17 | 7 | Galv. | LS01 | |
| WH006 | 1'' | 800 | 27 | 47 | 21 | 11 | 6.5 | Galv. | LS01 | |
| Open Double J Hook | |||||||||
 | Art. No. | Size | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||
| A | B | d | D | ||||||
| UH001 | 3'' | 10000 | 77 | 88 | 20 | 18 | Galv. | LS01 | |
| UH002-01 | 2'' | 5000 | 52 | 62 | 16 | 11.7 | Galv. | LS01 | |
| UH002-02 | 2'' | 4000 | 52 | 62 | 15 | 11.5 | Galv. | LS01 | |
| UH003 | 1 1/2'' | 3000 | 39 | 50 | 16 | 9.5 | Galv. | LS01 | |
| Eye Hook | |||||||||||||
 | Art. No. | Self Weight (kg) | Breaking Load (kg) | Dimension (mm) | Surface | Suitability | |||||||
| A | B | C | d1 | d2 | d3 | E | F | ||||||
| EH001 | 320 | 5000 | 55 | 22 | 18 | 17 | 8 | 19 | 55 | 15 | Galv. | Traction belt for car | |
| EH002 | 240 | 3000 | 55 | 22 | 18 | 17 | 8 | 19 | 55 | 15 | Galv. | ||
Customized Packaging
JULI standard export package: Heat shrinking film packaging + Carton + Pallet
Customized packaging according to customer needs
Certifications: ISO CE GS
Manufacturing Process
Production capacity: Breaking load from 0.25t till 10t, width from 25mm till 100mm are available.We are able to supply different kinds of protecting measures according to different using requirement.
Production process：Raw Materials—Weaving—Dyeing—Taping—Sewing —Repair and iron—Testing—Packing
Export Cases
-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions:2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 America.
When it comes to securing your cargo during transportation, ratchet straps are a game-changer. Specifically, ratchet tie-downs offer unmatched strength, adjustability, and reliability, making them an indispensable tool for cargo securing needs. At Juli slings, we take pride in manufacturing and supplying high-quality ratchet tie-downs that meet the demands of various industries. Choose our exceptional products and experience the peace of mind that comes with secure and efficient cargo transport. Contact us today to explore our range of ratchet tie-downs and unlock the power of unrivaled quality and performance.
FAQ
Q1：Are you factory or business company?
Juli Sling is an OEM&ODM manufacturer with nearly 38 years of history. Focusing on research and development and manufacturing of rigging.
Q2：What is your terms of delivery?
Accept EXW, FOB, CIF, etc. If you have any other choices or requirements, we could negotiate it together to help you find the most convenient and favorable one.
Q3：How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality controlling. Skillful workers care every details during the production; Strict quality testing in each process; Authoritative testing reports can be provided for customer.
Q4：What payment method is available?
By T/T, L/C, Other methods can be negotiated together.
