Introduce: Shackle

The shackles (both body and pin) we produce are made of high quality alloy steelthrough advanced production line and intermediate frequency furnace heat treatment. It is characterized by high-intensity, good toughness, small volume, light weight, beautiful appearance and good durability.

No need to use the thimble when the shackle was connected with high-strength lifting belt, wire rope sling and large radius's domed roof.  Wear-resisting property of the wire rope sling is improved obviously.

At present shackles used widely are made of alloy steel instead of carbon steel in the past. International standard shackles include shackles for lifting, shackles for ship and ordinary shackles. Shackles with big weight and volume are usually installed where seldom disassembled. Safety factor(usually there are 4:1, 6:1 and 8:1 available) is an important point when choosing shackles. We must use the shackles according to their WLL. Overuse and overload are both forbidden. Shackles widely used in market include Chinese standard, American standard and Japanesel standard. American standard shackles are used more because of small volume and big capacity. According to different type, American standard shackles include G209(BW), G210(DW), G2130(BX), G2150(DX); According to different using occasions, American standard shackles include shackles for ship and shackles used on land. For safety factor, there are 4:1, 5:1, 6:1 and even 8:1. For the raw material, there are carbon steel, alloy steel, stainless steel, high-strengthl steel etc. For the treatment, there are galvanizing (include hot-dip galvanizing and electrogalvanizing).

Flat Shackle
	Art. No.	WLL     (t)	W     (mm)	D     (mm)	P     (mm)	A     (mm)	O     (mm)	S     (mm)	Self  Weight     (kg)
	BK55	55	85	57	100	55	160	240	32.6
	BK85	85	110	76	130	75	200	310	78.4
	BK120	120	130	85	150	85	220	365	110.5
	BK150	150	140	95	170	90	250	390	154.8
	BK200	200	150	105	205	100	280	460	251.8
	BK300	300	185	134	265	120	350	630	451.7
	BK400	400	220	160	320	145	370	650	758.9
	BK500	500	250	180	340	160	450	700	1092.2
	BK600	600	275	200	370	170	490	760	1404.2
	BK700	700	300	215	400	190	540	780	1703.8
	BK800	800	325	230	420	200	554	850	1958.3
	BK900	900	350	255	440	220	584	900	2450
	BK1000	1000	380	270	460	240	614	900	2566.2
	BK1250	1250	430	300	530	260	644	950	3500
	BK1500	1500	460	320	560	280	680	950	4032
	BK2000	2000	500	385	600	320	680	1050	5067
	1.Working load limit: 55t~2000t.
	2.Materials of shackle body and pin are processed through quenching and tempering with high-qualityallov steel
	3.The shackle body and the pin are galvanized and thenthe pin paint in blue.

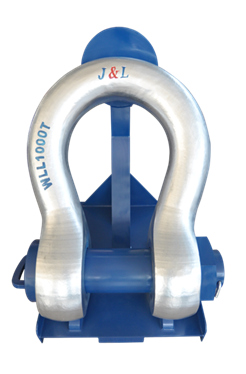

Large WLL Shackle With Circular Cross-Section
	Art. No.	WLL     (t)	W     (mm)	D     (mm)	d     (mm)	E     (mm)	S     (mm)	O     (mm)	Self   Weight     (kg)
	BX200-4 1/2	200	184	130	115	270	396	280	237
	BX300-5 1/8	300	200	150	130	320	450	300	363
	BX500-61/2	500	240	185	165	390	557.5	360	684
	BX800-8	800	300	240	207	493	660	440	1313
	BX1000-9 1/2	1000	390	270	240	556	783	560	2072
	BX1250-10 1/5	1250	400	300	260	620	850	560	2511
	1.Working load limit: 200t~1250t.
	2.Material: High-quality alloy steel.
	3.Max test load for 200t 500t: 1.5WLL, Max test load for 800t 1250t: 1.33WLL, Min breaking load for all:4WLL.
	4.Large WLL shackle with circular cross-section is designed according to JB 8112-1999 standards, with highperformance up to or exceeding ASME.B.30.26 requirements.

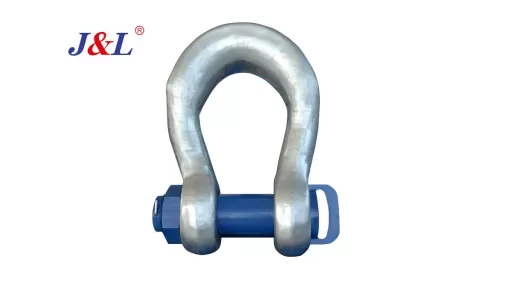

Grade S(6) Bow Shackle
	Art. No.	WLL     (t)	W     (mm)	D     (mm)	d     (mm)	E     (mm)	P     (mm)	S     (mm)	O     (mm)	L     (BW type)     (mm)	L     (BX type)     (mm)	Self Weight     (BW type)     (kg)	Self Weight     (BX type)     (kg)
	S-BW0.5-1/4     S-BX0.5-1/4	0.5	12	8	6.5	15.5	6.5	29	20	36.5	37	0.05	0.05
	S-BW0.75-5/16     S-BX0.75-5/16	0.75	13.5	10	8	19	8	31	21.5	44.5	45	0.1	0.1
	S-BW1-3/8     S-BX1-3/8	1	17	12	9.5	23	9.5	36.5	26	52.5	54	0.13	0.13
	S-BW1.5-7/16     S-BX1.5-7/16	1.5	19	14	11	27	11	43	29.5	62	62	0.21	0.22
	S-BW2-1/2     S-BX2-1/2	2	20.5	16	13	30	13	48	33	70.5	71.5	0.3	0.31
	S-BW3.25-5/8     S-BX3.25-5/8	3.25	27	20	16	38	17.5	60.5	43	88	89	0.64	0.67
	S-BW4.75-3/4     S-BX4.75-3/4	4.75	32	22	19	46	20.5	71.5	51	102.5	105	1.09	1.14
	S-BW6.5-7/8     S-BX6.5-7/8	6.5	36.5	27	22.5	53	24.5	84	58	121	121	1.7	1.76
	S-BW8.5-1     S-BX8.5-1	8.5	43	30	25.5	60.5	27	95	68.5	139	136.5	2.5	2.58
	S-BW9.5-1 1/8     S-BX9.5-1 1/8	9.5	46	33	29.5	68.5	32	108	74	154	149.5	3.79	3.96
	S-BW12-1 1/4     S-BX12-1 1/4	12	51.5	36	33	76	35	119	82.5	170.5	164.5	4.89	5.06
	S-BW13.5-1 3/8     S-BX13.5-1 3/8	13.5	57	39	36	84	38	133.5	92	186.5	179	7.04	7.29
	S-BW17-1 1/2     S-BX17-1 1/2	17	60.5	42	39	92	41	146	98.5	201	194.5	8.35	8.75
	S-BW25-1 3/4     S-BX25-1 3/4	25	73	52	47	106.5	57	178	127	244	239	13.72	14.22
	S-BW35-2     S-BX35-2	35	82.5	60	53	122	61	197	146	275	269	20.33	21
	S-BW55-2 1/2     S-BX55-2 1/2	55	105	72	69	144.5	79.5	267	184	346	344	40.92	42.12
	1.It is made of high quality alloy steel by die forging.
	2.Each shackle will be marked with WLL permanently, WLL from 0.5t ~ 150t.
	3.Our products all correspond with the stipulated technical requirement and test approach in standard ISO2415-2004.

Grade S6 D Shackle
	Art. No.	WLL     (t)	W     (mm)	D     (mm)	d     (mm)	E     (mm)	P     (mm)	S     (mm)	L (DW type） (mm)	L     (DX type)     (mm)	Self Weight     (DW type)     (kg)	Self Weight     (DX type)     (kg)
	S-DW0.5-1/4     S-DX0.5-1/4	0.5	12	8	6.5	15.5	6.5	22	36.5	37	0.04	0.06
	S-DW0.75-5/16     S-DX0.75-5/16	0.75	13.5	10	8	19	8	26	44.5	45	0.08	0.1
	S-DW1-3/8     S-DX1-3/8	1	17	12	9.5	23	9.5	32	52.5	54	0.13	0.13
	S-DW1.5-7/16     S-DX1.5-7/16	1.5	19	14	11	27	11	36.5	62	62	0.2	0.21
	S-DW2-1/2     S-DX2-1/2	2	20.5	16	13	30	13	41.5	70.5	71.5	0.27	0.28
	S-DW3.25-5/8     S-DX3.25-5/8	3.25	27	20	16	38	16	51	88	89	0.57	0.6
	S-DW4.75-3/4     S-DX4.75-3/4	4.75	32	22	19	46	20.5	60.5	102.5	105	0.99	1.04
	S-DW6.5-7/8     S-DX6.5-7/8	6.5	36.5	27	22.5	53	24.5	71.5	121	121	1.57	1.63
	S-DW8.5-1     S-DX8.5-1	8.5	43	30	25.5	60.5	25.5	81	139	136.5	2.3	2.38
	S-DW9.5-1 1/8     S-DX9.5-1 1/8	9.5	46	33	29	68.5	32	91	153	149.5	3.42	3.59
	S-DW12-1 1/4     S-DX12-1 1/4	12	51.5	36	32	76	35	100	168.5	164.5	4.48	4.65
	S-DW13.5-1 3/8     S-DX13.5-1 3/8	13.5	57	39	35	84	38	111	184.5	179	6.46	6.71
	S-DW17-1 1/2     S-DX17-1 1/2	17	60.5	42	38	92	41	122	199	194.5	7.65	8.05
	S-DW25-1 3/4     S-DX25-1 3/4	25	73	52	44.5	106.5	54	146	244	239	12.48	13.18
	S-DW35-2     S-DX35-2	35	82.5	60	51	122	61	171.5	275	269	18.63	19.3
	S-DW55-2 1/2     S-DX55-2 1/2	55	105	72	66.5	144.5	66.5	203	346	344	36.02	37.22
	1. It is made of high quality alloy steel by die forging.
	2. Each shackle will be marked with WLL permanently, WLL from 0.5t ~ 85t.
	3. The Maximum testing load is twice of the working load, the minimum breaking load is 6 times of the WLL.

JULI standard export package: Poly Bag+Pallets, Customized packaging according to customer needs

The forging rigging factory of Juli Sling Co.,Ltd is the largest production base for forging rigging in Asia with advanced forging, heat treatment, surface coating and nondestructive testing equipment and the most advanced production technology. Main forging equipment: 5T size free forging hydraulic hammer,4000t, 2500t, 1000t size friction press machine and 750kg ~ 1,000kg size air forging hammer etc.  We also researched and developed 400t, 1000t, 1500t, 2000t size bending machine.  The annual producing capacity is 20,000t. Product category: Flat shackle, Large WLL shackle with circular cross-section, Bow shackle, D shackle etc, Production range: 0.5t-2,000t.
