Introduce: 6×19S+IWR Round Strand Steel Wire Rope

Juli sling annual output is up to 100,000 tons, and the products diameters are from 9mm to 46mm. According to the cross-section shape of wire rope strand, steel wire rope can be classified into round strand wire rope and shaped strand wire rope. The product is called round strand wire rope. All size can be customized to meet your requirements.

Description:

1. Product Type: Round strand wire rope(6×19)

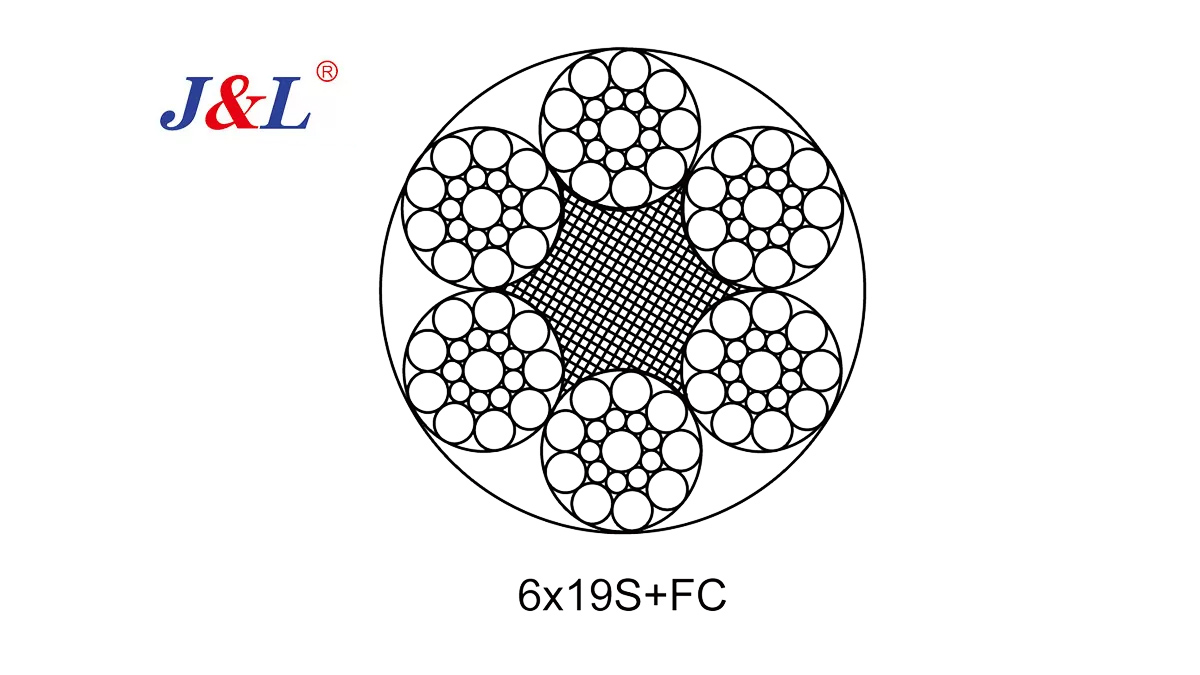

2. Rope Type: 6×19+FC, 6×19+IWR, 6×19+IWS, 6×19S+FC, 6×19S+IWR, 6×19W+FC, 6×19W+IWR, etc.

3. Application: 6×19: It is used in a variety of lifting, hoisting, and traction equipment. 6×19S: It is used in blast fumace hoisting, petroleum drilling, heavy-duty casting crane (steel core) , heavy lifting and other important usage of crane, steel heat transfer machine (steel core) , ship mast tensioning suspension bridge (steel core) . 6×19W : It is used in petroleum drilling, heavy-duty casting crane (steel core), heavy lifting and other important usage of crane, steel heat transfer machine (steel core) , Shipping handling.

4. Surface: Galvanized/ Smooth

5. Rope Nominal Diameter: 9mm~46mm

6. Length: Customized

7. Nominal Tensile Strength: 1570Mpa~2160Mpa

8. Standards: Perform national and international standards, GB/T20118, EN, GOST, API.

9. Place of Origin: Hebei, China

10. Brand Name: J&L

Inquire Now

Advantage:

1. Advanced Manufacturing Equipment: Equipped with large, medium and small wire rope manufacturing workshops with advanced technology, sophisticated equipment and complete product varieties.

2. Production Capacity: Annual production capacity over 100,000 ton. One of the professional manufacturing bases of wire rope with the largest production volume and specifications in China.

3. Well-experienced: Nearly 40 years of OEM&ODM manufacturing and export experience, Professional technical team, Support customized product.

4. Standards: Perform national and international standards, GB/T20118, EN, GOST, API.

5. High quality: Strict quality control before,in and after production, Authoritative testing report can be provided. Ensuring steel wire rope has the following advantages: Transmit long distance load. The bearing safety factor is large, and the use is safe and reliable. Be able to bear multiple loads and variable loads. High tensile strength, fatigue strength and impact toughness. Wear-resistant, anti-seismic and stable in operation at high speed. Good corrosion resistance and can work normally in the harsh environment of various harmful media.

Steel Wire Rope

Product Usage:

It is widely used in a variety of lifting, hoisting, and traction equipment.

Also the metallurgical, machinery construction field. Such as cranes, construction machinery, shaft lifting, inclined shaft lifting, port loading and unloading, shipbuilding, transportation, mining industry, petroleum, and marine engineering, etc.

Steel Wire Rope

Specifications

Round Strand Wire Rope

Rope Type	Rope Nominal Diameter (mm)	Approx. Weight (kg/100m)			Nominal Tensile Strength (Mpa)
					1570		1670		1770		1870		1960		2160
					Minimum Breaking Strength (KN)
		Natural Fiber Core	Synthetic Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core
6×19 (a)	12	53.1	51.8	58.4	74.6	80.5	79.4	85.6	84.1	90.7	88.9	95.9	93.1	100	103	111
	13	62.3	60.8	68.5	87.6	94.5	93.1	100	98.7	106	104	113	109	118	120	130
	14	72.2	70.5	79.5	102	110	108	117	114	124	121	130	127	137	140	151
	16	94.4	92.1	104	133	143	141	152	150	161	158	170	166	179	182	197
	18	119	117	131	168	181	179	193	189	204	200	216	210	226	231	249
	20	147	144	162	207	224	220	238	234	252	247	266	259	279	285	308
	22	178	174	196	251	271	267	288	283	305	299	322	313	338	345	372
	24	212	207	234	298	322	317	342	336	363	355	383	373	402	411	443
	26	249	243	274	350	378	373	402	395	426	417	450	437	472	482	520
	28	289	282	318	406	438	432	466	458	494	484	522	507	547	559	603
	30	332	324	365	466	503	496	535	526	567	555	599	582	628	642	692
	32	377	369	415	531	572	564	609	598	645	632	682	662	715	730	787
	34	426	416	469	599	646	637	687	675	728	713	770	748	807	824	889
	36	478	466	525	671	724	714	770	757	817	800	863	838	904	924	997
	38	532	520	585	748	807	796	858	843	910	891	961	934	1010	1030	1110
	40	590	576	649	829	894	882	951	935	1010	987	1070	1030	1120	1140	1230
	42	670	654	737	914	986	972	1049	1030	1112	1088	1174	1141	1231	--	--
	Note: Steel wire min. aggregate breaking strength = Min. breaking strength of steel wire rope× 1.214(fiber core) or 1.308(steel core).

Round Strand Wire Rope

Rope Type	Rope Nominal Diameter(mm)	Approx. Weight (kg/100m)			Nominal Tensile Strength (Mpa)
					1570		1670		1770		1870
					Minimum Breaking Strength (KN)
		Natural Fiber Core	Synthetic Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core
6×19(b)	9	28.4	27.9	32.4	39	42.2	41.6	44.9	44	47.6	46.5	50.3
	10	35.1	34.4	40	48.2	52.1	51.3	55.4	54.4	58.8	57.4	62.1
	11	42.5	41.6	48.4	58.3	63.1	62	67.1	65.8	71.1	69.5	75.1
	12	50.5	50	57.6	69.4	75.1	73.8	79.8	78.2	84.6	82.7	89.4
	13	59.3	58.1	67.6	81.5	88.1	86.6	93.7	91.8	99.3	97	105
	14	68.8	67.4	78.4	94.5	102	100	109	107	115	113	122
	16	89.9	88.1	102	123	133	131	142	139	150	147	159
	18	114	111	130	156	169	166	180	176	190	186	201
	20	140	138	160	193	208	205	222	217	235	230	248
	22	170	166	194	233	252	248	268	263	284	278	300
	24	202	198	230	278	300	295	319	313	338	331	358
	26	237	233	270	326	352	346	375	367	397	388	420
	28	275	270	314	378	409	402	435	426	461	450	487
	30	316	310	360	434	469	461	499	489	529	517	559
	32	359	352	410	494	534	525	568	557	602	588	636
	34	406	398	462	557	603	593	641	628	679	664	718
	36	455	446	518	625	676	664	719	704	762	744	805
	38	507	497	578	696	753	740	801	785	849	829	896
	40	562	550	640	771	834	820	887	869	940	919	993
	42	619	607	706	850	919	904	978	959	1040	1010	1100
	44	680	666	774	933	1010	993	1070	1050	1140	1110	1200
	46	743	728	846	1020	1100	1080	1170	1150	1240	1210	1310
	Note: Steel wire min. aggregate breaking strength = Min. breaking strength of steel wire rope× 1.226(fiber core) or 1.321(steel core).

Package

JULI standard export package: Wooden Reel / Steel Wheel Reel

Customized packaging according to customer needs

Steel Wire Rope

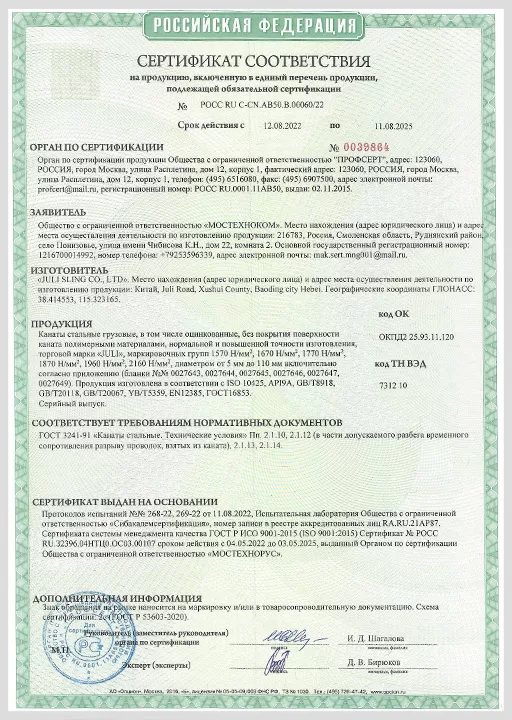

Certifications: API GOST ISO

Manufacturing Process

JULI's steel wire rope sling factory has a wide production line, equipped with the strongest technical force and the most thoughtful after-sale service. Possess the largest 10,000T pressing machine, and it should be the largest one in Asia market. Several heavy duty equipment have got the patent for inventing, including: horizontal turning grommet sling machine, horizontal vertical grommet sling machine and large-scaled horizontal steel cable splicing machine, etc. Production process includes Wire Rod, Drawing, Heat Treatment, Galvanized, Secondary Drawing, Stranding, Mixed Rope, Pretension and Packaging.

Steel Wire Rope

Export Cases

-Main markets: America, Canada, Mexico, the Middle East, Africa, Australia, Russia, Europe, Japan, Vietnam, India, etc
-Exhibitions:2015.10 KORMARINE, 2016.11 OSEA, 2018.11 OSEA, 2019.11 ADIPEC, 2020.11 Bauma China, 2023.4 Neftegaz, 2024.3 OTC ASIA, 2024.5 America.

6×19S IWR Round Strand Steel Wire Rope

FAQ

Q1：Are you factory or business company?

Juli Sling is an OEM&ODM manufacturer with nearly 38 years of history. Focusing on research and development and manufacturing of rigging.

Q2：What is your terms of delivery?

Accept EXW, FOB, CIF, etc. If you have any other choices or requirements, we could negotiate it together to help you find the most convenient and favorable one.

Q3：How does your factory do regarding quality control?

Quality is priority. We always attach great importance to quality controlling. Skillful workers care every details during the production; Strict quality testing in each process; Authoritative testing reports can be provided for customer.

Q4：What payment method is available?

By T/T, L/C, Other methods can be negotiated together.
